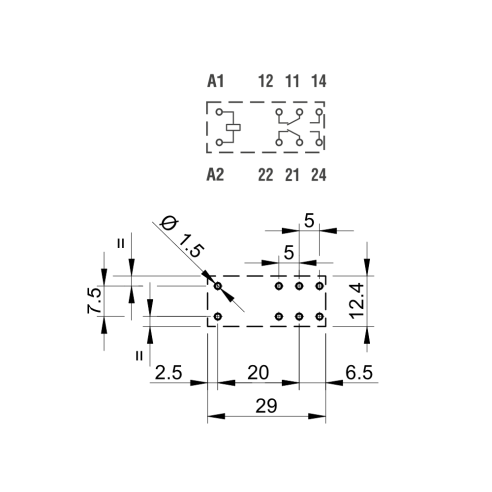

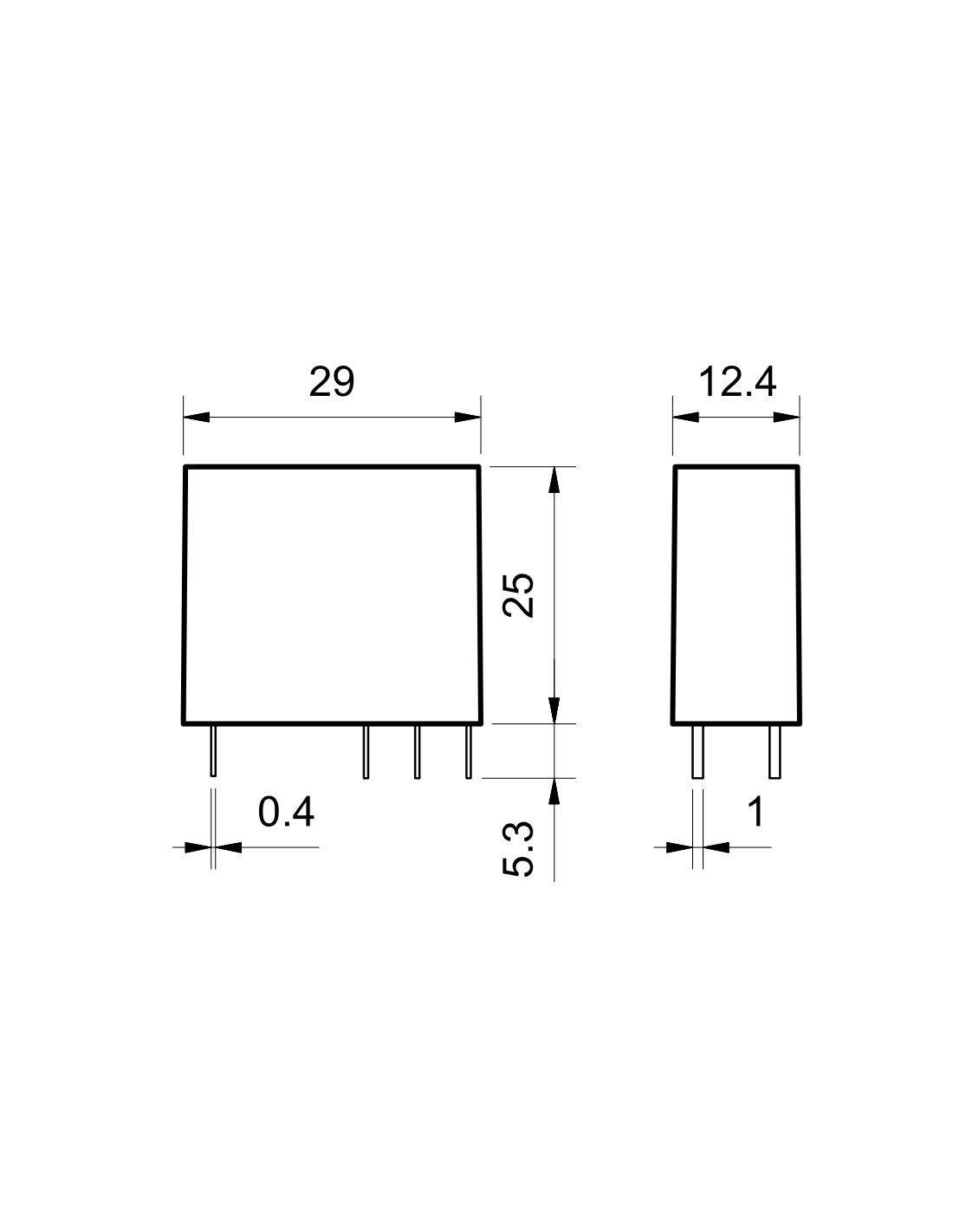

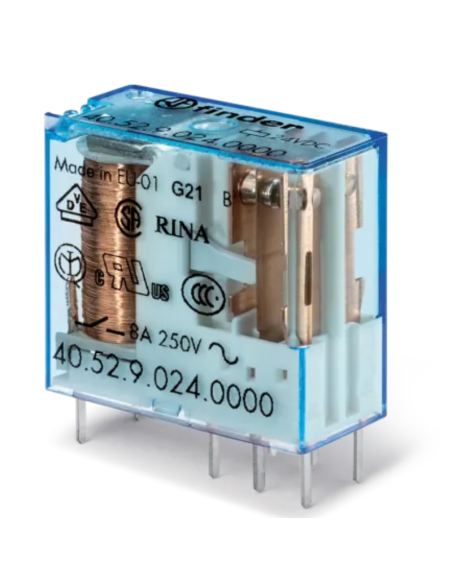

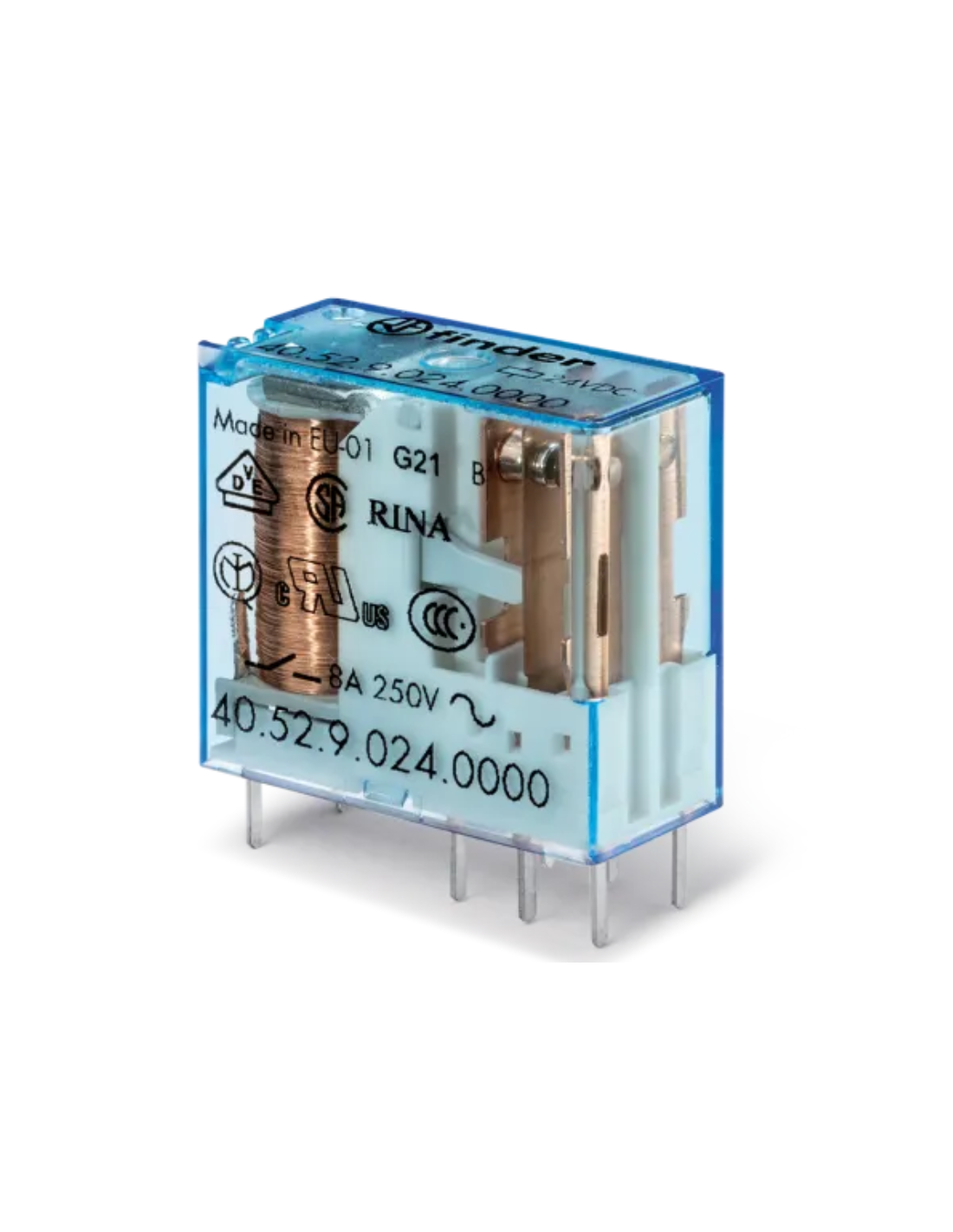

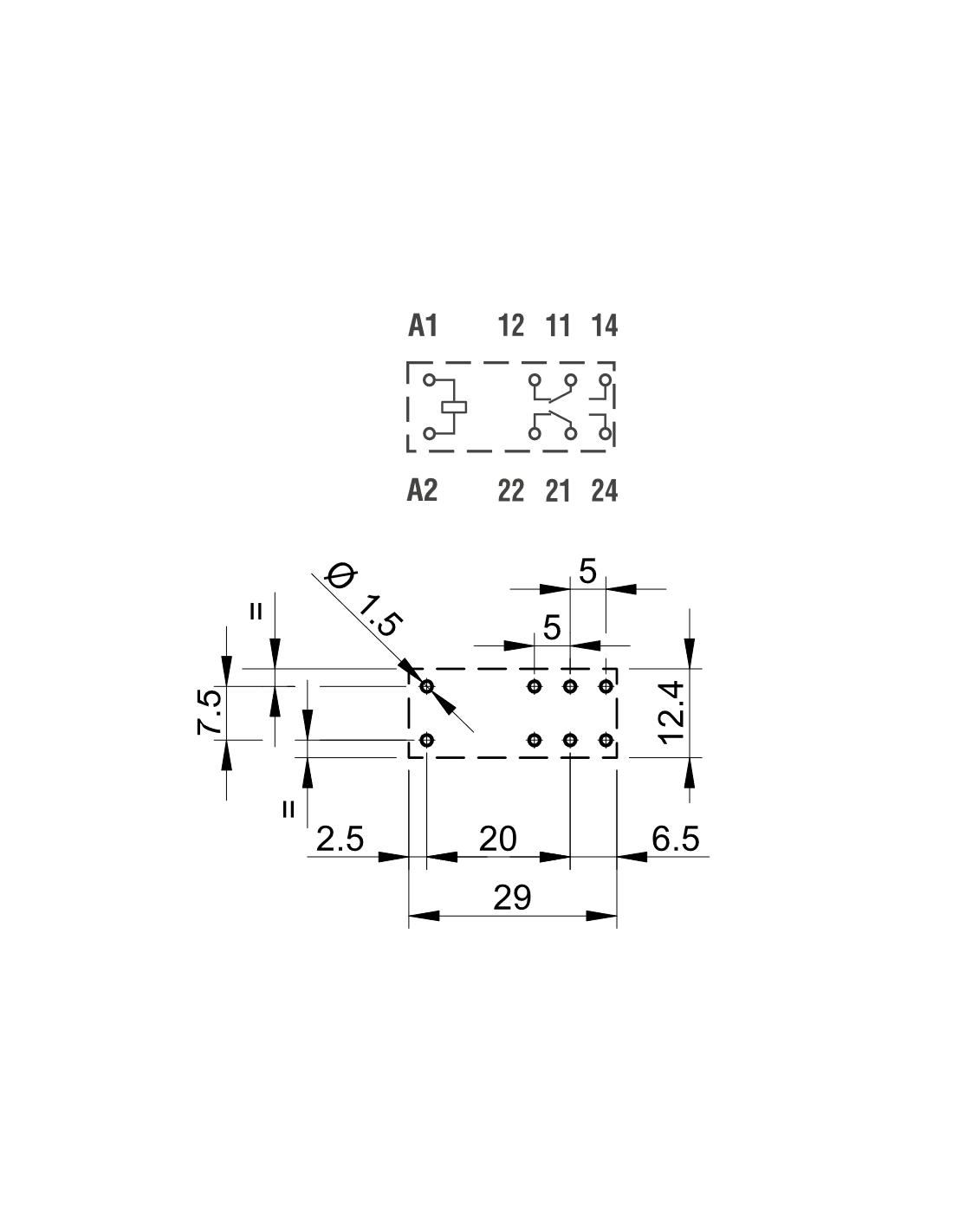

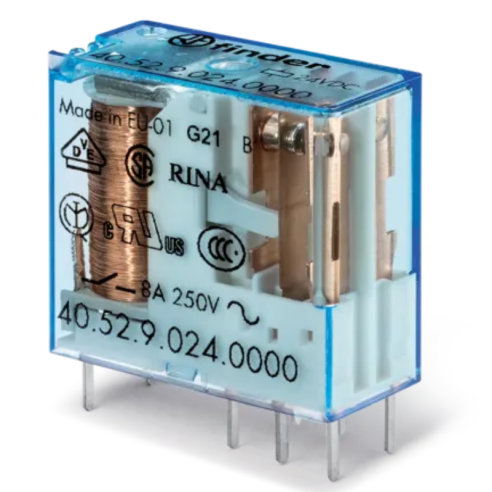

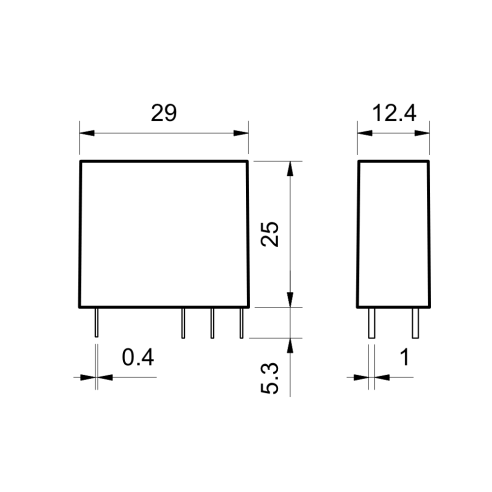

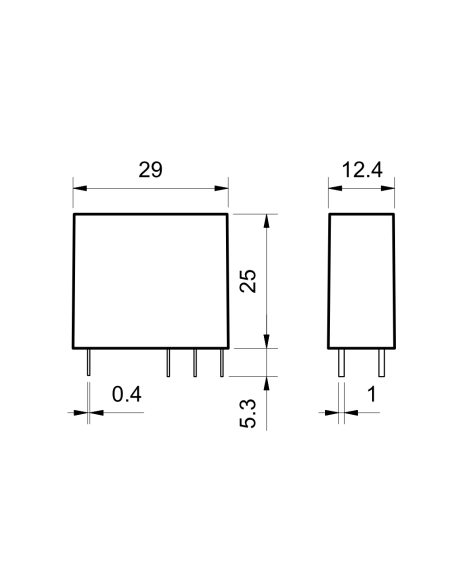

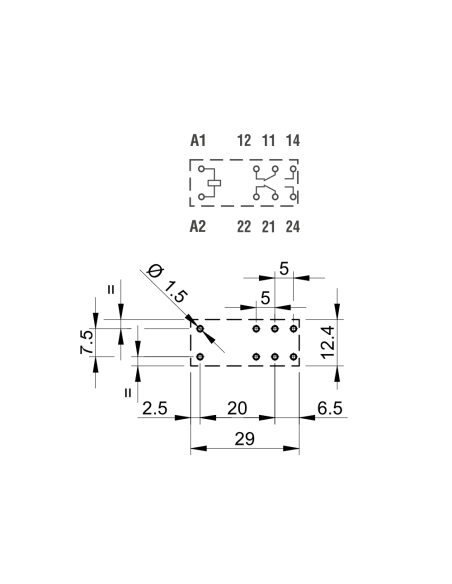

Power relay, 6 Vdc, DPDT, 8 A, through-hole (THT), 40.52 series - Finder 40.52.9.006.0000
Power relay, 6 Vdc, DPDT, 8 A, through-hole (THT), 40.52 series - Finder 40.52.9.006.0000
Power relay, 6 Vdc, DPDT, 8 A, through-hole (THT), 40.52 series - Finder 40.52.9.006.0000

Power relay, 6 Vdc, DPDT, 8 A, through-hole (THT), 40.52 series - Finder 40.52.9.006.0000

52.130.2602000
10 Items
€5.08
Tax included
The Mini Relay Type 40.52 is a 95 Series plug-in and PCB relay.
With 2 switches 8 A on a printed circuit board, 5.0 mm pitch, it is a versatile device suitable for many applications such as control panels, control and distribution boards, electronic boards, door and gate openers and more.

Quantity Unit price You Save
10 €4.83 €2.54
20 €4.57 €10.16

Description

Contact configuration
Contact configuration2 exchanges
Rated current/maximum instantaneous current8A / 15A
Rated voltage / maximum switchable voltage250Vac / 400Vac
Nominal load in AC12000VA
Nominal load in AC15750VA
Single-phase motor capacity0.37 KW
Minimum switchable load300mW
Contact materialAgNi
Coil characteristics
Nominal supply voltage6Vdc
Nominal power1,2W
General features
Mechanical durability10 x 10⁶ cycles
Electrical durability100 x 10³ cycles
Switching time: excitation/de-energization7ms / 3ms
Insulation between coil and contacts6KV
Dielectric strength between open contacts1000Vac
Model40.52.9.006.0000
ManufacturerFinder

Product Details

Brand
Finder
Relay type
Power relays
Contact configuration
DPDT
Coil voltage
6 Vdc
Contact current
8A
Replaces product code
8161
