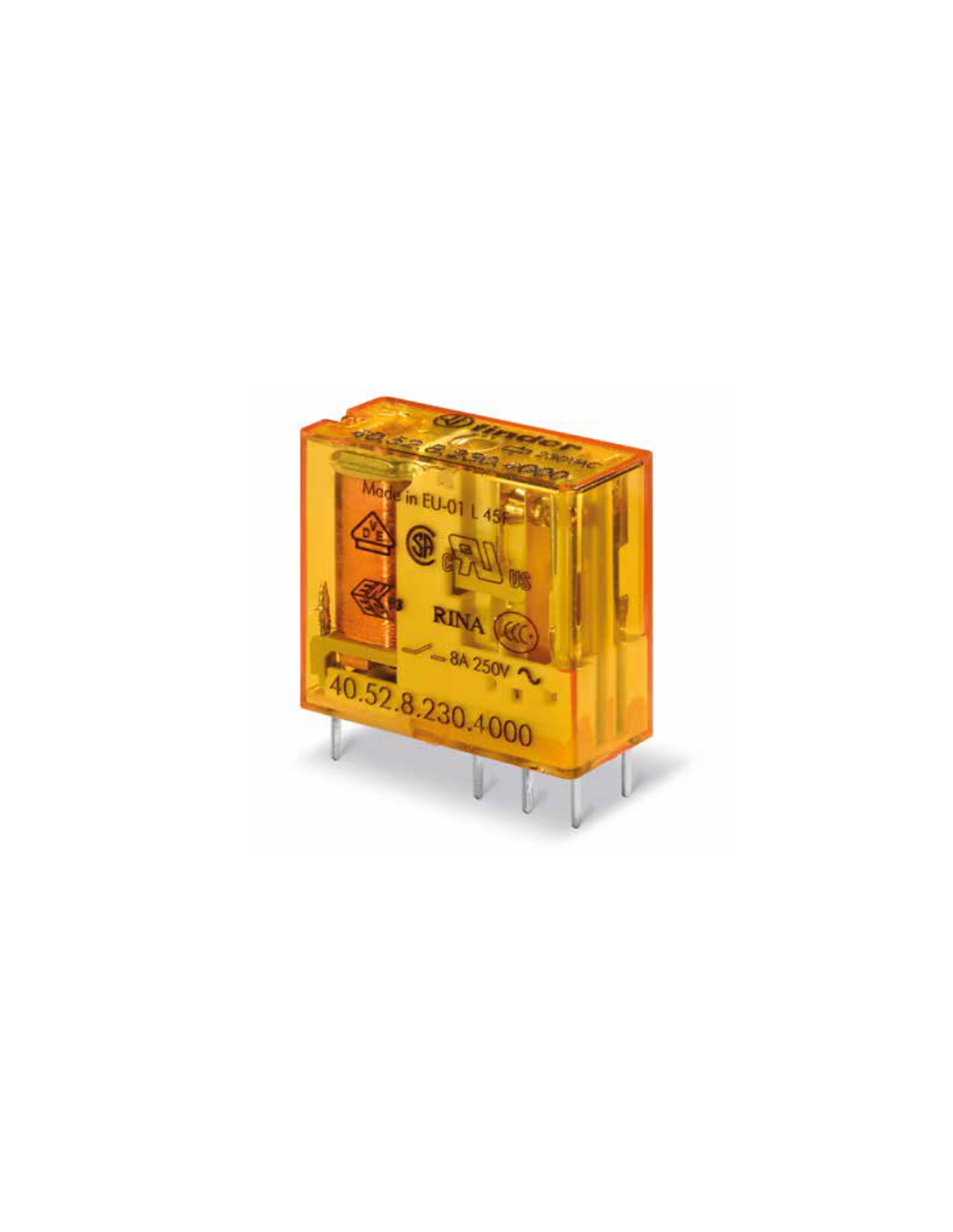

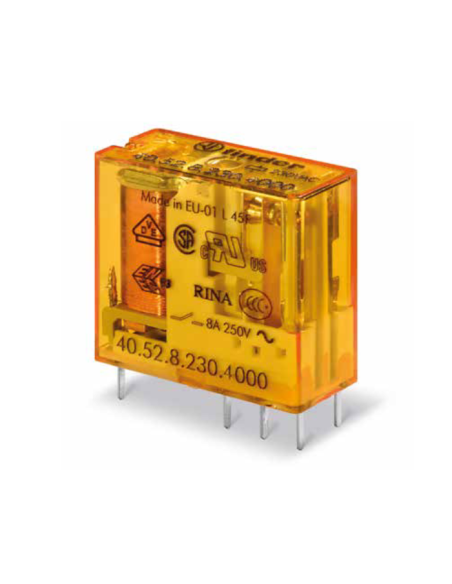

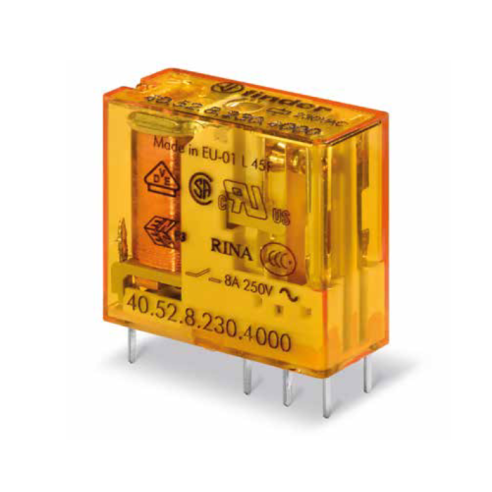

Power relay, 230 Vac, DPDT, 8 A, through-hole (THT), 40.52 series - Finder 40.52.8.230.0000

Power relay, 230 Vac, DPDT, 8 A, through-hole (THT), 40.52 series - Finder 40.52.8.230.0000

Name: Power relay, 230 Vac, DPDT, 8 A, through-hole (THT), 40.52 series - Finder 40.52.8.230.0000
Brand: Finder
SKU: 52.130.2638000
Price: 10.9 EUR
Availability: InStock

SKU 52.130.2638000

In stock 34 Items

€10.90

Tax included

The Mini Relay Type 40.52 is a 95 Series plug-in and PCB relay.

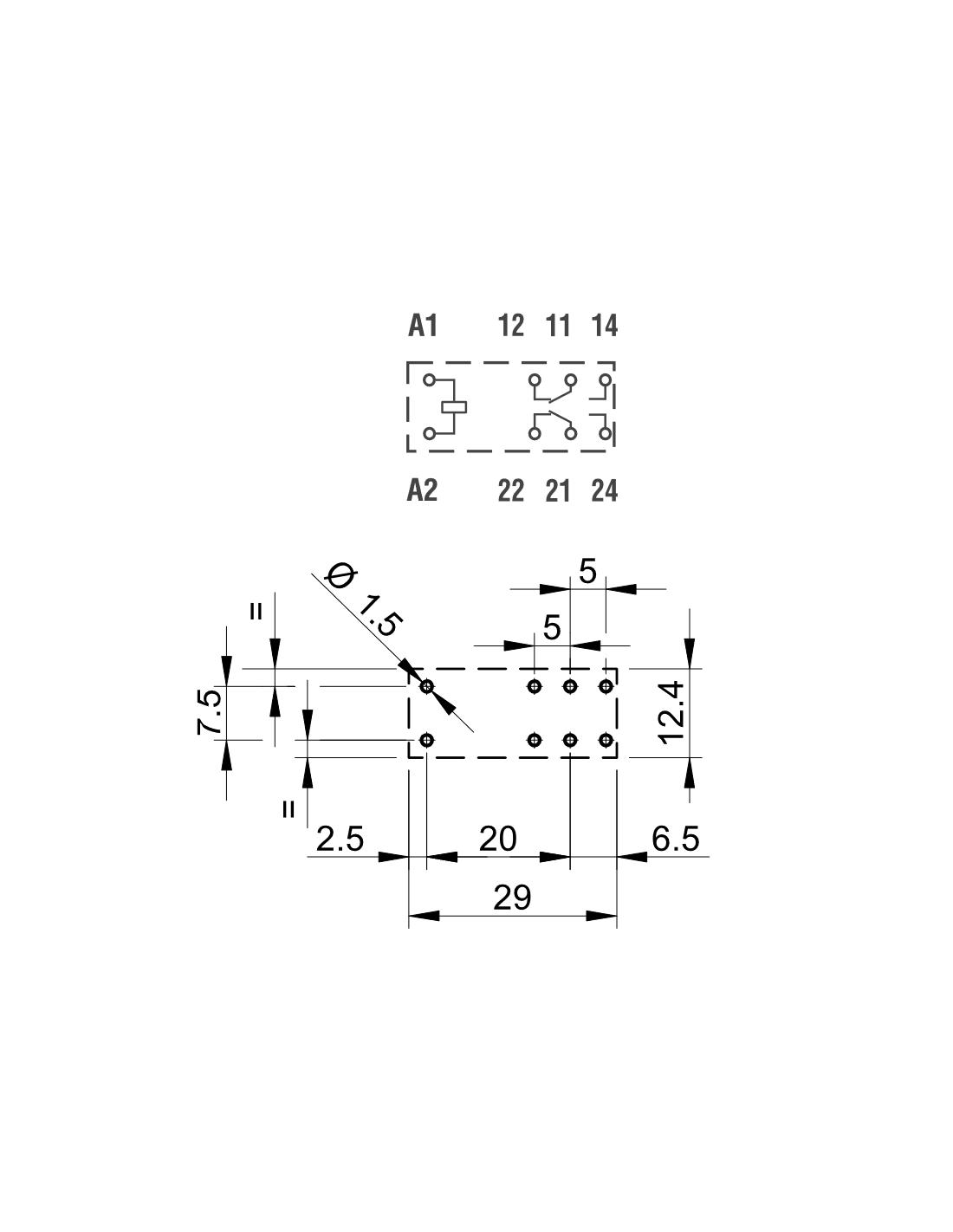

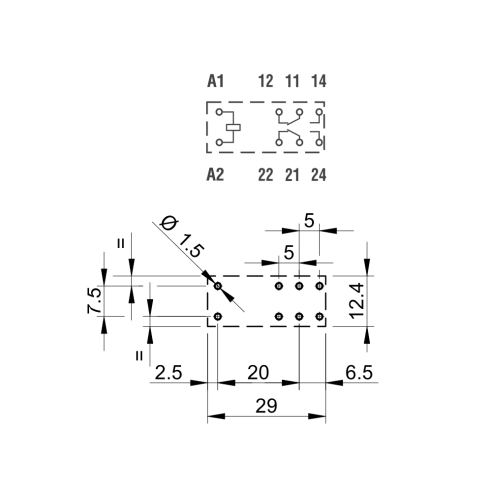

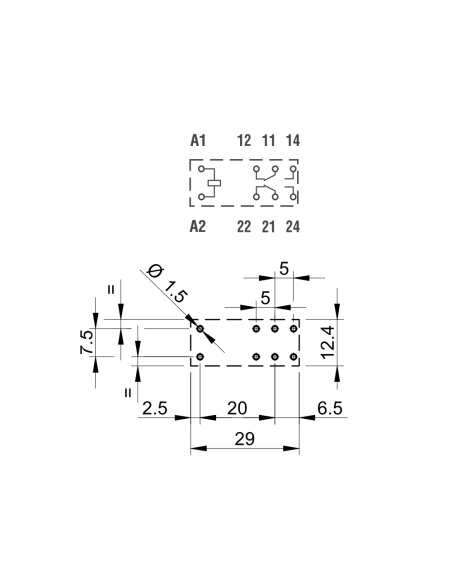

With 2 switches 8 A on a printed circuit board, 5.0 mm pitch, it is a versatile device suitable for many applications such as control panels, control and distribution boards, electronic boards, door and gate openers and more.

Quantity	Unit price	You Save
10	€10.36	€5.45
30	€9.81	€32.70

Description

Contact configuration
Contact configuration	2 exchanges
Rated current/maximum instantaneous current	8A / 15A
Rated voltage / maximum switchable voltage	250Vac / 400Vac
Nominal load in AC1	2000VA
Nominal load in AC15	750VA
Single-phase motor capacity	0.37 KW
Minimum switchable load	300mW
Contact material	AgNi
Coil characteristics
Nominal supply voltage	230Vac
Nominal power	1,2W
General features
Mechanical durability	10 x 10⁶ cycles
Electrical durability	100 x 10³ cycles
Switching time: excitation/de-energization	7ms / 3ms
Insulation between coil and contacts	6KV
Dielectric strength between open contacts	1000Vac
Model	40.52.8.230.0000
Manufacturer	Finder
