Name: Power relay, 5 Vdc, SPDT, 12 A, through-hole (THT), 40.31 series - Finder 40.31.7.005.0000
Brand: Finder
SKU: 52.130.2402002
Price: 7.2 EUR
Availability: OutOfStock

SKU 52.130.2402002

Out-of-Stock

€7.20

Tax included

PCB mounting or plug-in on socket Series 95, 1 switch 12 A (3.5 mm pitch).

Features:
- Terminal length 3.5 mm for PCB mounting;
- 500 mW DC coil;
- 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts;
- Glow wire test compliance to EN 60335-1;
- 95 series sockets for PCB, or 35 mm rail mounting (EN 60715) with Push-in, screw or spring terminals;
- EMC signalling and protection modules series 99 and timer modules type 86.30;
- Protection category: RT II - flameproof (Standard);

Quantity	Unit price	You Save
10	€6.84	€3.60
20	€6.48	€14.40

Description

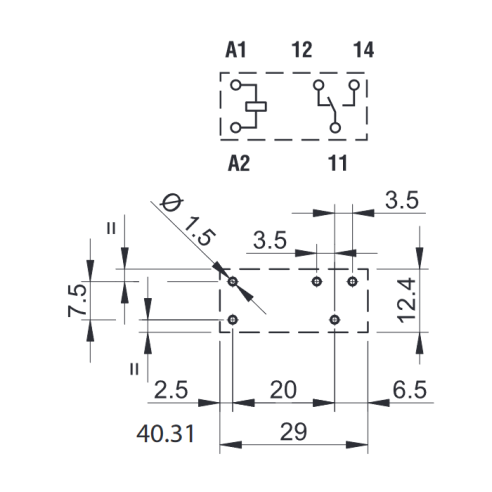

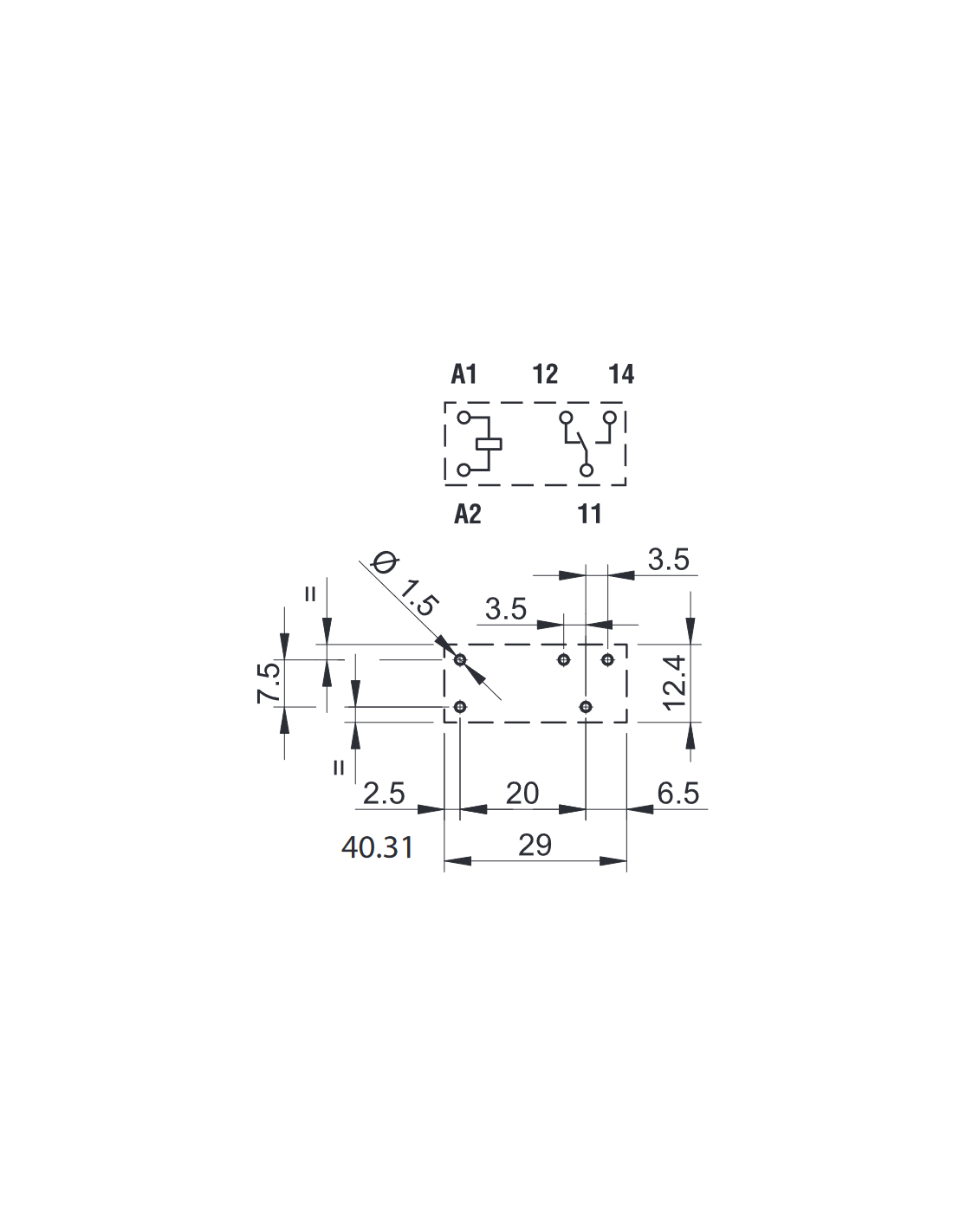

Contact configuration
Contact configuration	1 exchange
Rated current/maximum instantaneous current	12A / 20A
Rated voltage / maximum switchable voltage	250Vac / 400Vac
Nominal load in AC1	3000VA
Nominal load in AC15	1000VA
Single-phase motor capacity	0.55 KW
Minimum switchable load	300mW
Contact material	AgNi
Coil characteristics
Nominal supply voltage	5 Vdc
Nominal power	0,5 W
General features
Mechanical durability	10 x 10⁶ cycles
Electrical durability	200 x 10³ cycles
Switching time: excitation/de-energization	7ms / 3ms
Insulation between coil and contacts	6KV
Dielectric strength between open contacts	1000Vac
Operating temperature	-40°C ~ +85°C
Protection category	RTII
Product information
Model	40.31.7.005.0000
Manufacturer	Finder
