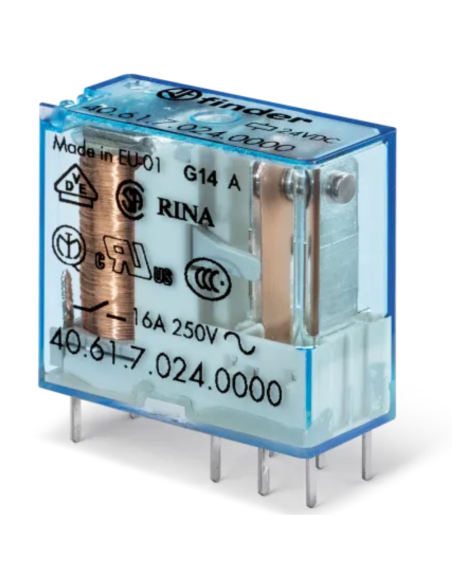

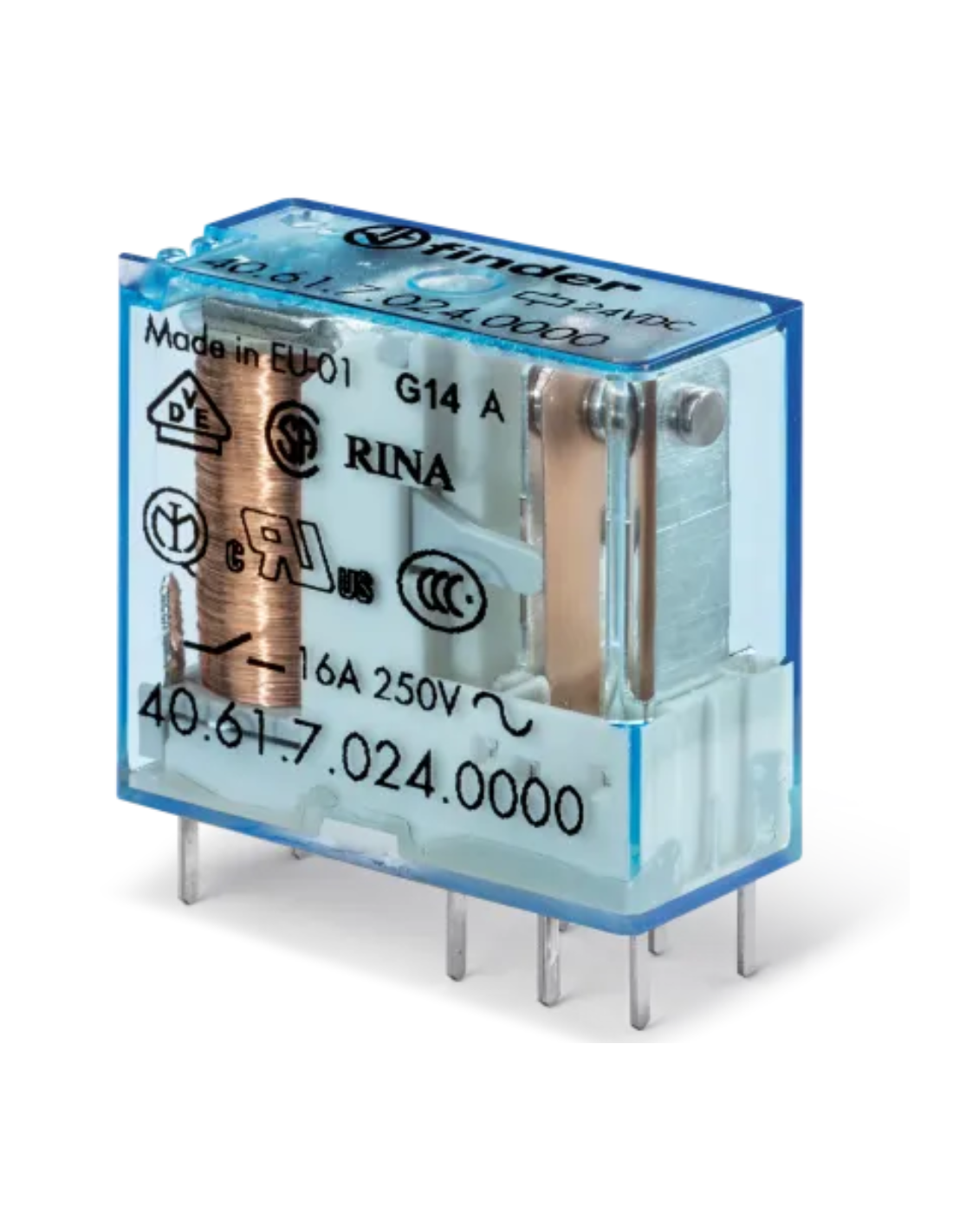

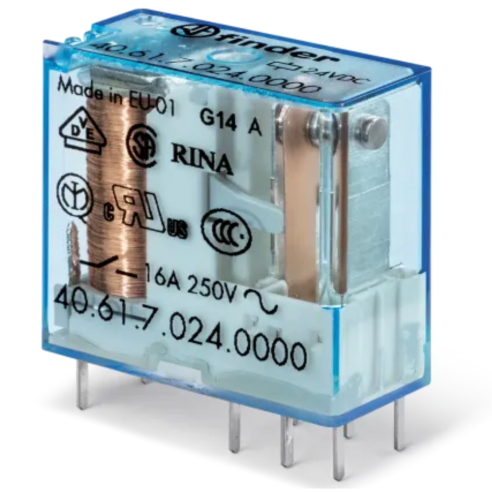

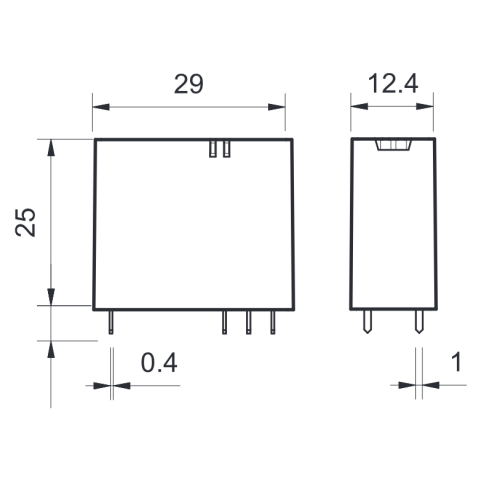

Power relay, 6 Vdc, SPDT, 16 A, through-hole (THT), 40.61 series - Finder 40.61.9.006.0000

Power relay, 6 Vdc, SPDT, 16 A, through-hole (THT), 40.61 series - Finder 40.61.9.006.0000

Name: Power relay, 6 Vdc, SPDT, 16 A, through-hole (THT), 40.61 series - Finder 40.61.9.006.0000
Brand: Finder
SKU: 52.130.2402010
Price: 8.22 EUR
Availability: InStock

SKU 52.130.2402010

In stock 20 Items

€8.22

Tax included

PCB mounting or plug-in on socket Series 95, 1 switch 16 A (5.0 mm pitch).

Features:
- Terminal length 5.3 mm for PCB mounting;
- DC coil - 650mW;
- 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts;
- Glow wire test compliance to EN 60335-1;
- 95 series sockets for PCB or 35 mm rail mounting (EN 60715) with Push-in, screw or spring terminals;
- EMC signalling and protection modules series 99 and timer modules type 86.30;
- Protection category: RT II - flameproof (Standard).

Quantity	Unit price	You Save
10	€7.81	€4.11
20	€7.40	€16.44

Description

Contact configuration
Contact configuration	1 exchange
Rated current/maximum instantaneous current	16A / 30A
Rated voltage / maximum switchable voltage	250Vac / 400Vac
Nominal load in AC1	4000VA
Nominal load in AC15	1000VA
Single-phase motor capacity	0.37 KW
Minimum switchable load	500mW
Contact material	AgNi
Coil characteristics
Nominal supply voltage	6 Vdc
Nominal power	0,65 W
General features
Mechanical durability	10 x 10⁶ cycles
Electrical durability	100 x 10³ cycles
Switching time: excitation/de-energization	7ms / 3ms
Insulation between coil and contacts	6KV
Dielectric strength between open contacts	1000Vac
Operating temperature	-40°C ~ +85°C
Protection category	RTII
Product information
Model	40.61.9.006.0000
Manufacturer	Finder
