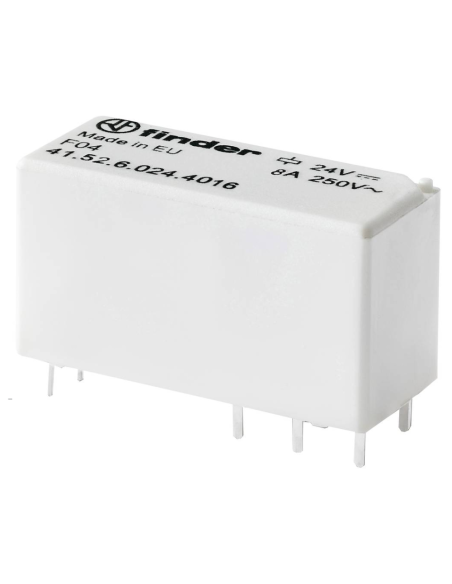

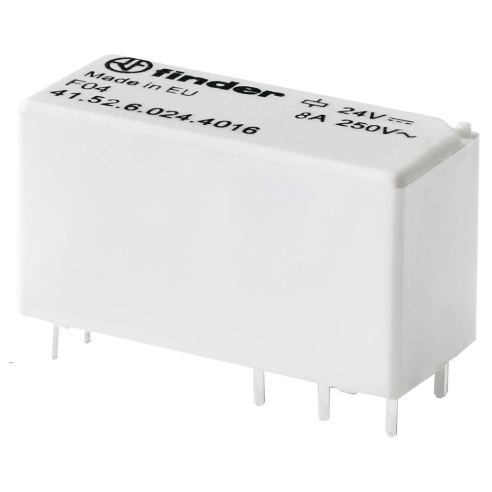

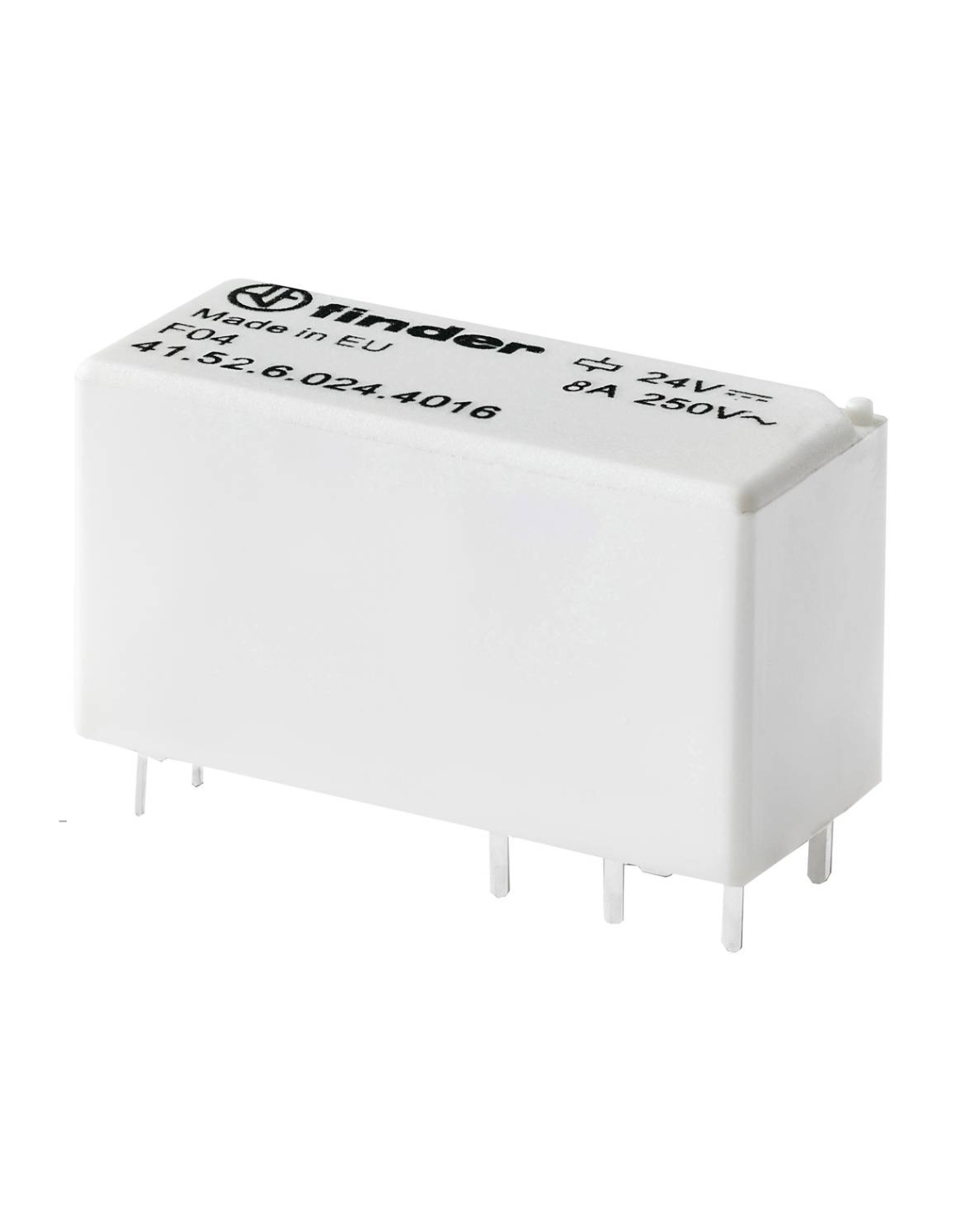

Low profile relay, 12 Vdc, bistable, DPDT, 8 A, through-hole (THT), series 41.52 - Finder 41.52.6.012.4016

Name: Low profile relay, 12 Vdc, bistable, DPDT, 8 A, through-hole (THT), series 41.52 - Finder 41.52.6.012.4016
Brand: Finder
SKU: 52.130.2603010
Price: 8.6 EUR
Availability: OutOfStock

SKU 52.130.2603010

Out-of-Stock

€8.60

Tax included

PCB mini relay 2 exchanges 8 A (5 mm pitch).

Features:

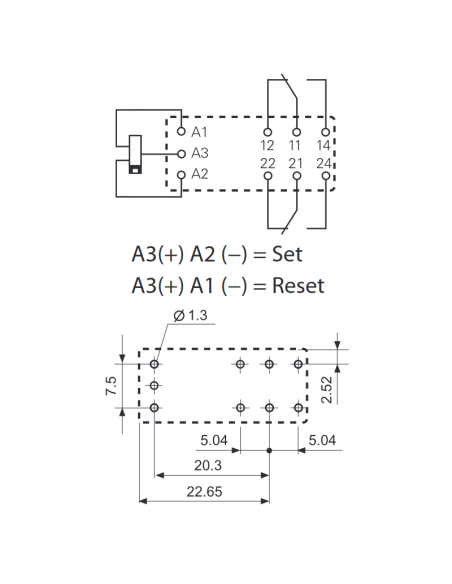

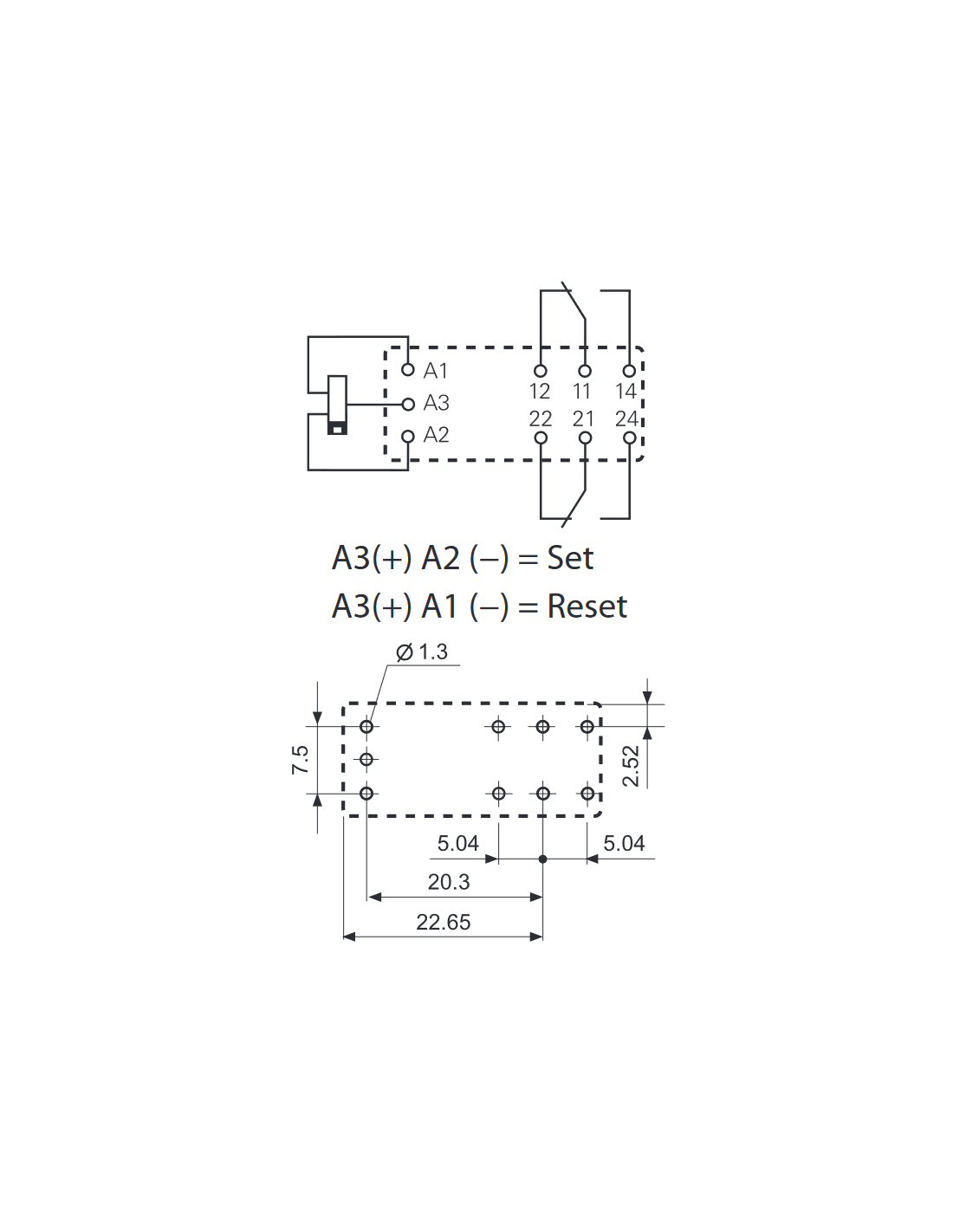

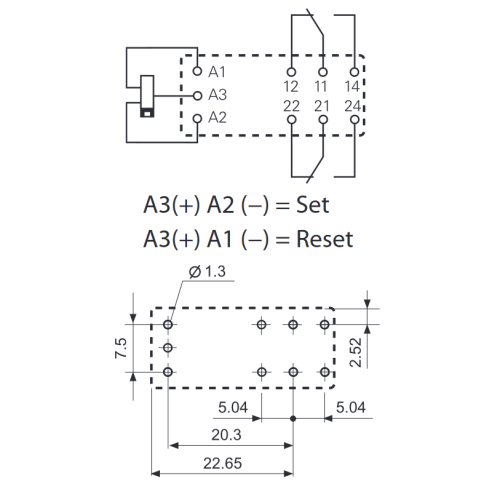

- Bistable relay, 2 coils, polarised;
- AgSnO2 contacts;
- Direct PCB or socket mounting, 35 mm rail mounting (EN 60715) on sockets with sleeve or spring terminals;
- DC coil;
- 10 mm, 6 kV (1.2/50 μs) between coil and contacts;
- Flux-proof: RT II standard;

Quantity	Unit price	You Save
10	€8.17	€4.30
20	€7.74	€17.20

Description

Contact configuration
Contact configuration	2 exchanges
Rated current/maximum instantaneous current	8A / 15A
Rated voltage / maximum switchable voltage	250Vac / 400Vac
Nominal load in AC1	2000VA
Nominal load in AC15	350VA
Single-phase motor capacity	0.37 KW
Minimum switchable load	500mW
Contact material	AgSnO2
Coil characteristics
Nominal supply voltage	12 Vdc
Nominal power	0,65 W
General features
Mechanical durability	5 x 10⁶ cycles
Electrical durability	30 x 10³ cycles
Switching time: excitation/de-energization	10ms / 5ms
Insulation between coil and contacts	6KV
Dielectric strength between open contacts	1000Vac
Operating temperature	-40°C ~ +85°C
Protection category	RTII
Product information
Model	41.52.6.012.4016
Manufacturer	Finder
