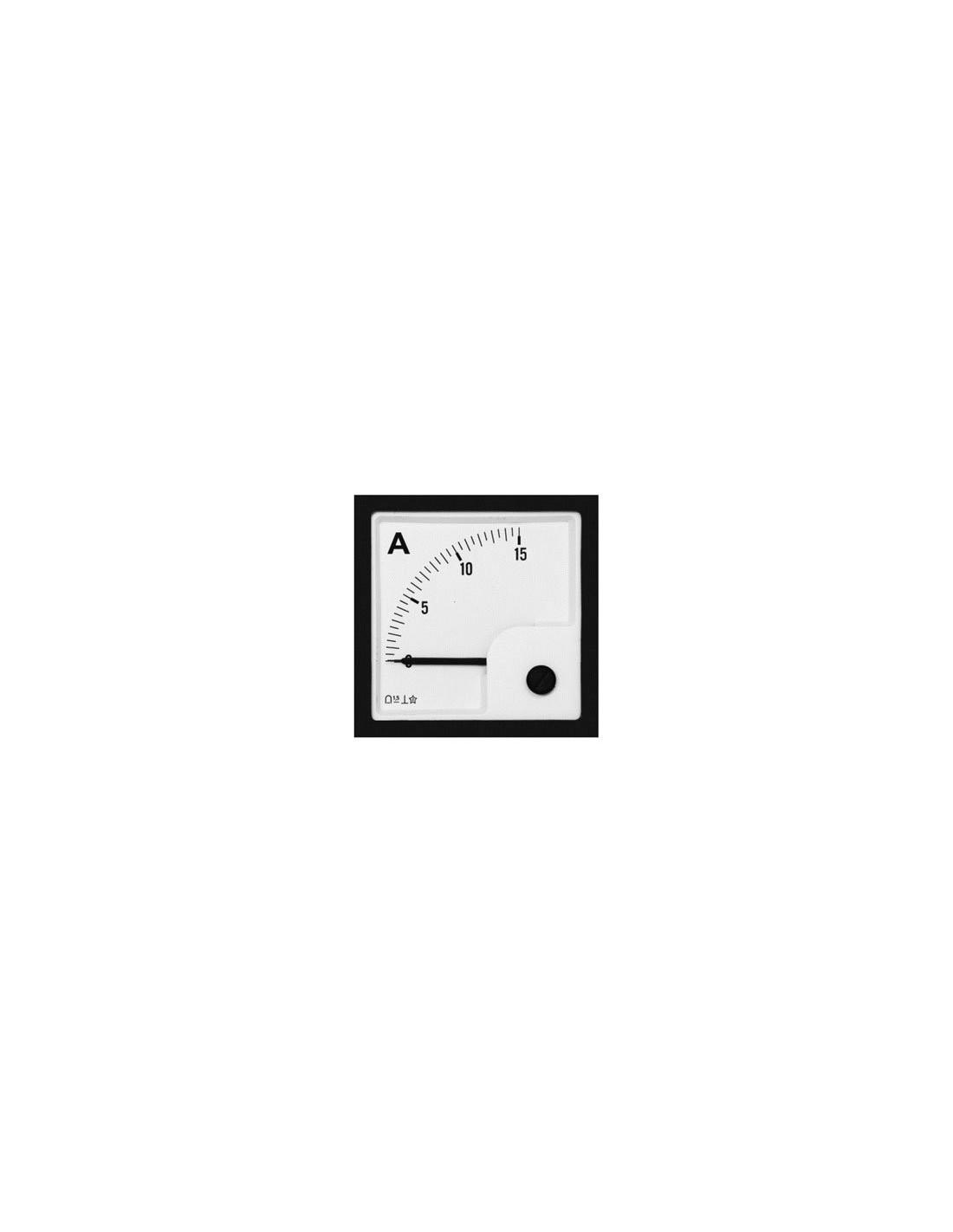

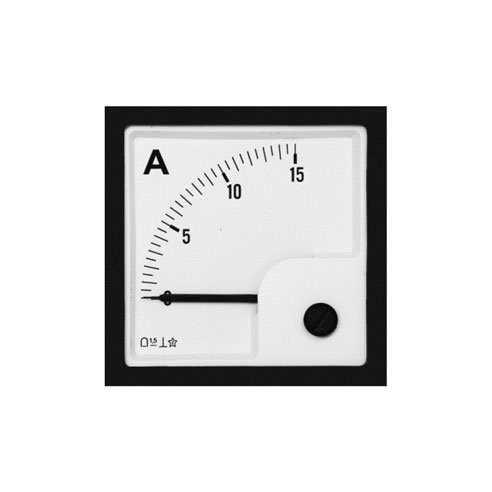

Analogue panel ammeter, for DC currents, 48 x 48 mm, 90° scale, 10A capacity - Spei Italy M SRC 48 010A D

Name: Analogue panel ammeter, for DC currents, 48 x 48 mm, 90° scale, 10A capacity - Spei Italy M SRC 48 010A D
Brand: Spei Italy
SKU: 40.001.0302600
Price: 9.7 EUR
Availability: InStock

SKU 40.001.0302600

In stock 5 Items

€9.70

Tax included

Description

Frequency of operation	40 ~ 60Hz
Permanent overload	1.2 In
Instantaneous overload (less than 0.5 seconds)	10 In
Accuracy	1,5%
Insulation reference voltage	0.6kV
Test voltage	2kV/50Hz for 60 seconds
Operating temperature	-10°C ~ +55°C
Storage temperature	-40°C ~ +70°C
IP rating of the housing	IP52
IP rating of terminals	IP00
Material	self-extinguishing thermoplastic (UL94-V0 standard)
Reference Standards	CEI EN61010-1/ CEI EN 60051-1-2 /CEI EN 60688
Rating	10A
Model	M SRC 48 010A D
