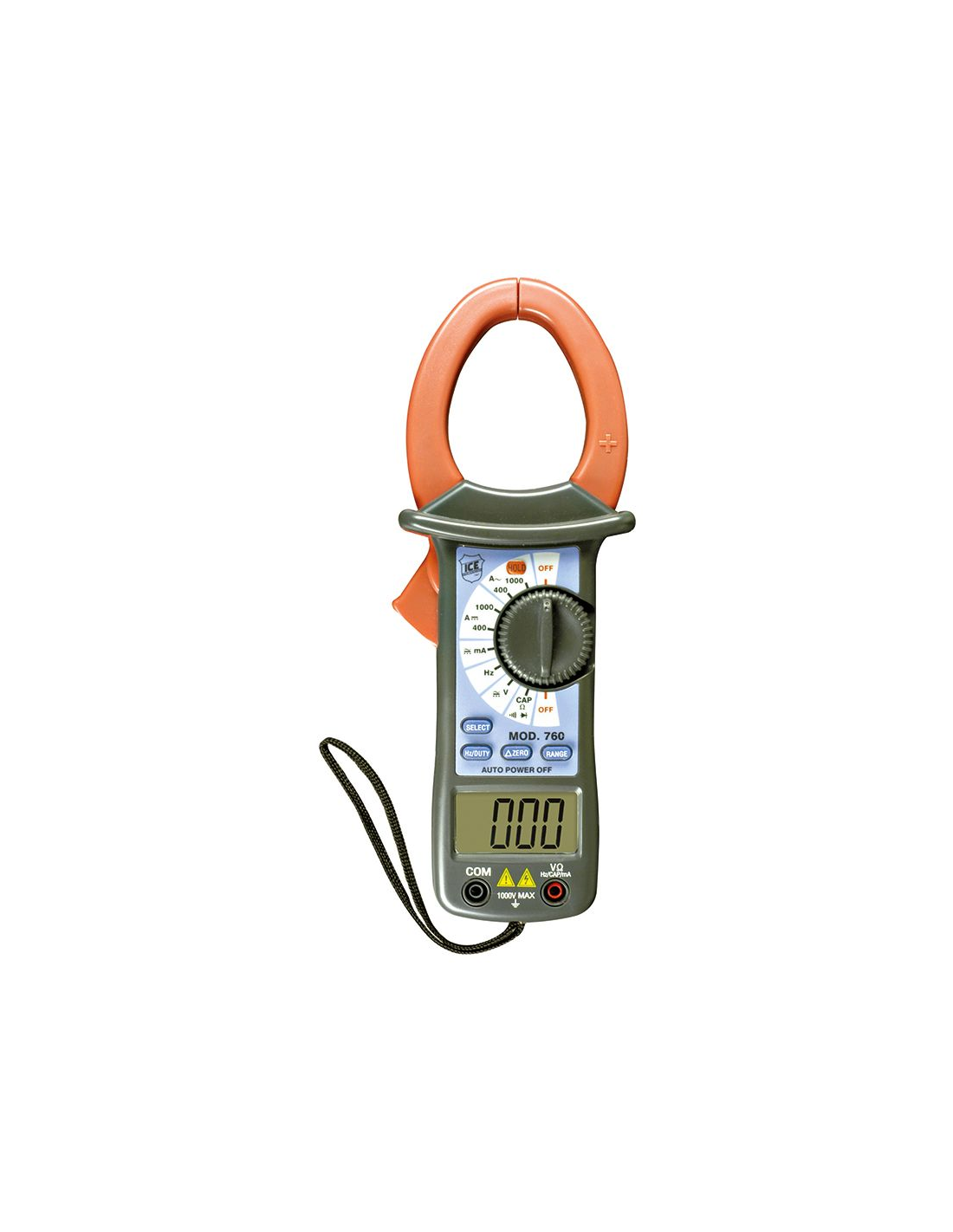

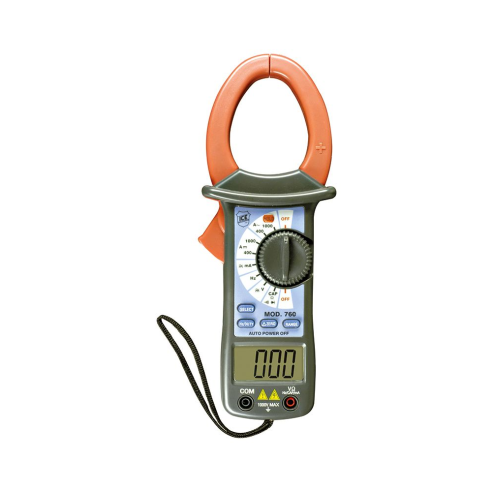

3 3/4 digit ICE 760 CAT III 600V current clamp

Name: 3 3/4 digit ICE 760 CAT III 600V current clamp
Brand: ICE
SKU: 40.001.0020005
Price: 180.8 EUR
Availability: OutOfStock

SKU 40.001.0020005

Out-of-Stock

€180.80

VAT included

Functions: DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, duty cycle, diode test, continuity test.

Maximum capacity: 1000A (AC/DC). IEC 1010 CAT III 600V compliant.

Input impedance	10 MΩ for all voltmeter ranges
Accuracy	AC amps: ± 2.0% + 5 digits (50-60Hz)
	DC amps: ± 2.0% + 5 digits
	AC volts: ± 1.5% + 5 digits
	DC volts: ± 1.0% + 3 digits
	Ohm: ± 1.0% + 3 digits
	Capacity: ± 3.0% + 5 digits
	Frequency: ± 1.0% + 3 digits
	Temperature: ± 1.5% + 5 digits
Rating	AC amperes: 400A - 1000A; max. res. 100mA
	DC amps: 400A - 1000A; max. res. 100mA
	AC volts: 700V; max. res. 0.1mV
	DC volts: 1000V; max. res. 0.1mV
	Ohm: 40MΩ; max. res. 0.1Ω
	Capacity: 10mF; max. res. 0.001nF
	Frequency: 40MHz; max. res. 0.01Hz
	Temperature: 1000 °C; max. resolution 1 °C
Functions	continuity test with median buzzer signal
	Memory
	Diode test
	Duty cycle from 1% to 99%.
	Auto power OFF
	Inrush current ≥80ms
Protections	Electronics for Ohm measurements
Power supply	1 9V battery
Dimensions	248 x 88 x 45 mm
Weight	400 grams
Accessories included	Pair of tips
	Transport strap
	Nylon bag
	Instruction manual
	type K probe (max. 200 °C)
Manufacturer	ICE
Model	760
