Fuse D, NDZ E16, fast tripping, 13x50mm, 500V 16A, use F - Wimex 5300016
Fuse D, NDZ E16, fast tripping, 13x50mm, 500V 16A, use F - Wimex 5300016

Fuse D, NDZ E16, fast tripping, 13x50mm, 500V 16A, use F - Wimex 5300016

61.001.2103701
191 Items
€1.16
VAT included
D fuses, for use up to 500V, are the most widespread in the world.
They find application in industrial plants, motor protection, cable protection and in civil and similar installations.

Quantity Unit price You Save
10 €1.10 €0.58
30 €1.04 €3.48

Description

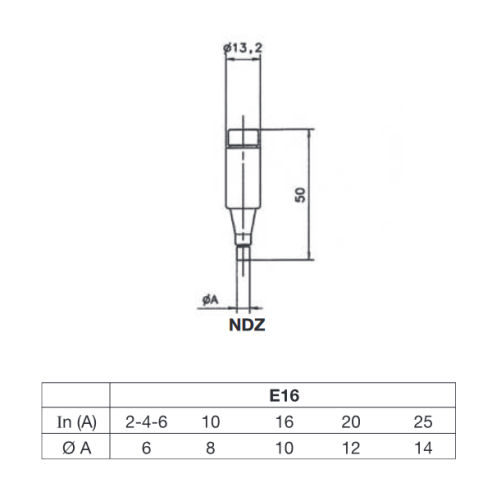

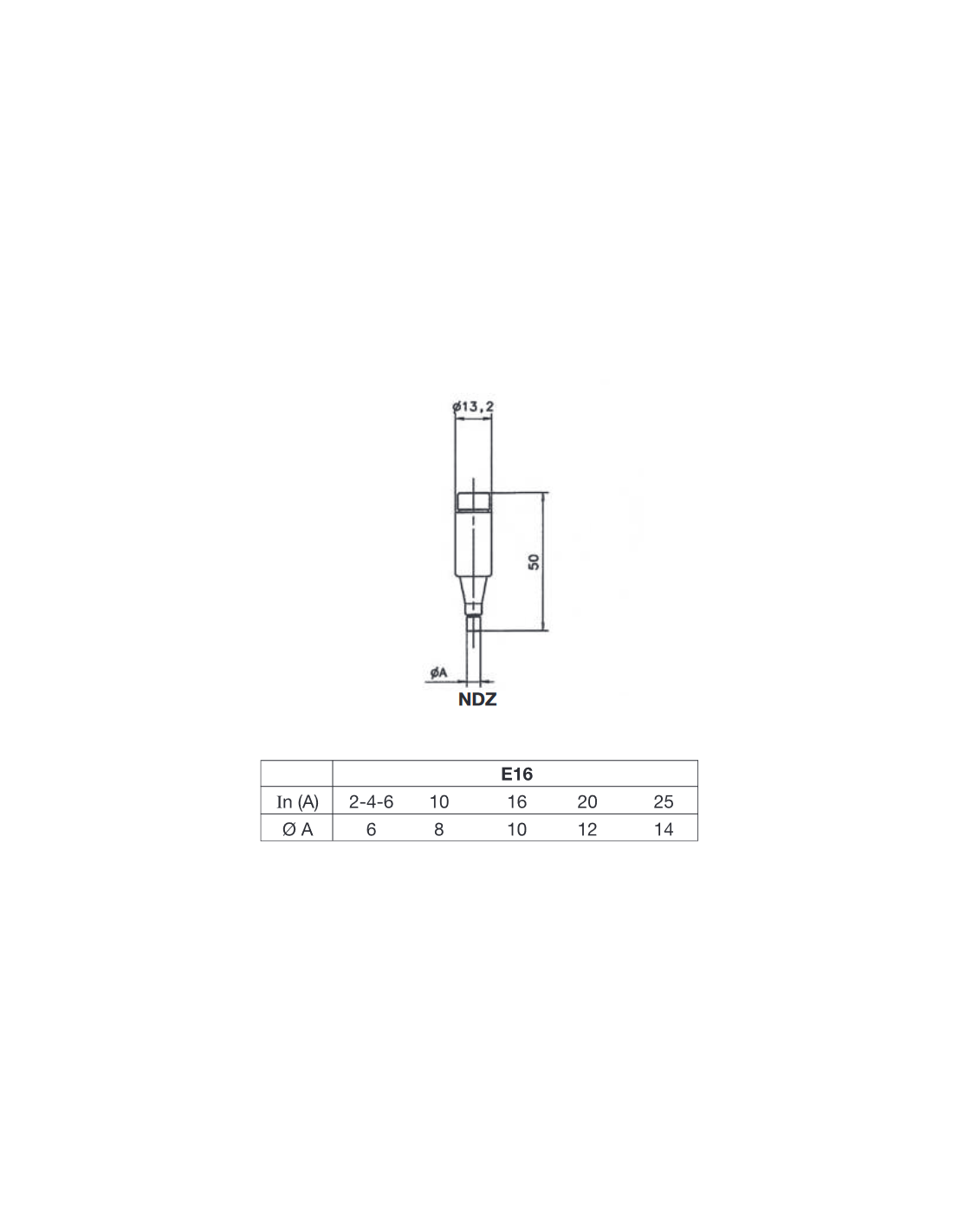

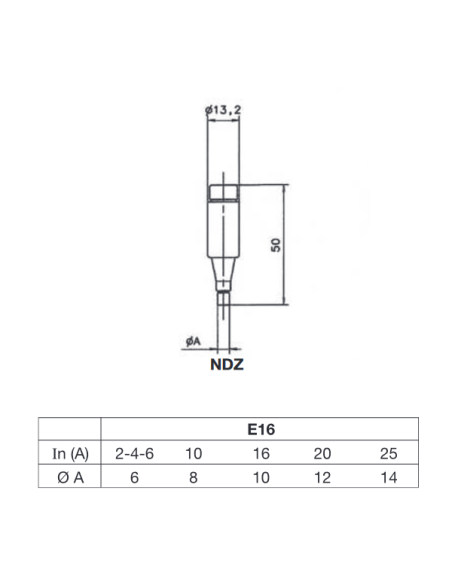

Dimensions13 x 50 mm
MaterialSteatite
Intervention characteristicQuick
Interruption rangeF
Rated current16 A
Rated voltage500 Vac, 400 Vdc
Interrupting power (lk)50KA
Reference StandardsCEI 32.1-.5IEC EN 60269.1-.2-.3VDE 0636
Model5300016
ManufacturerWimex

Product Details

Brand
Wimex
Fuse type
D ⌀13 x 50 mm
Rated voltage
500V
Corrente nominale
16 A
