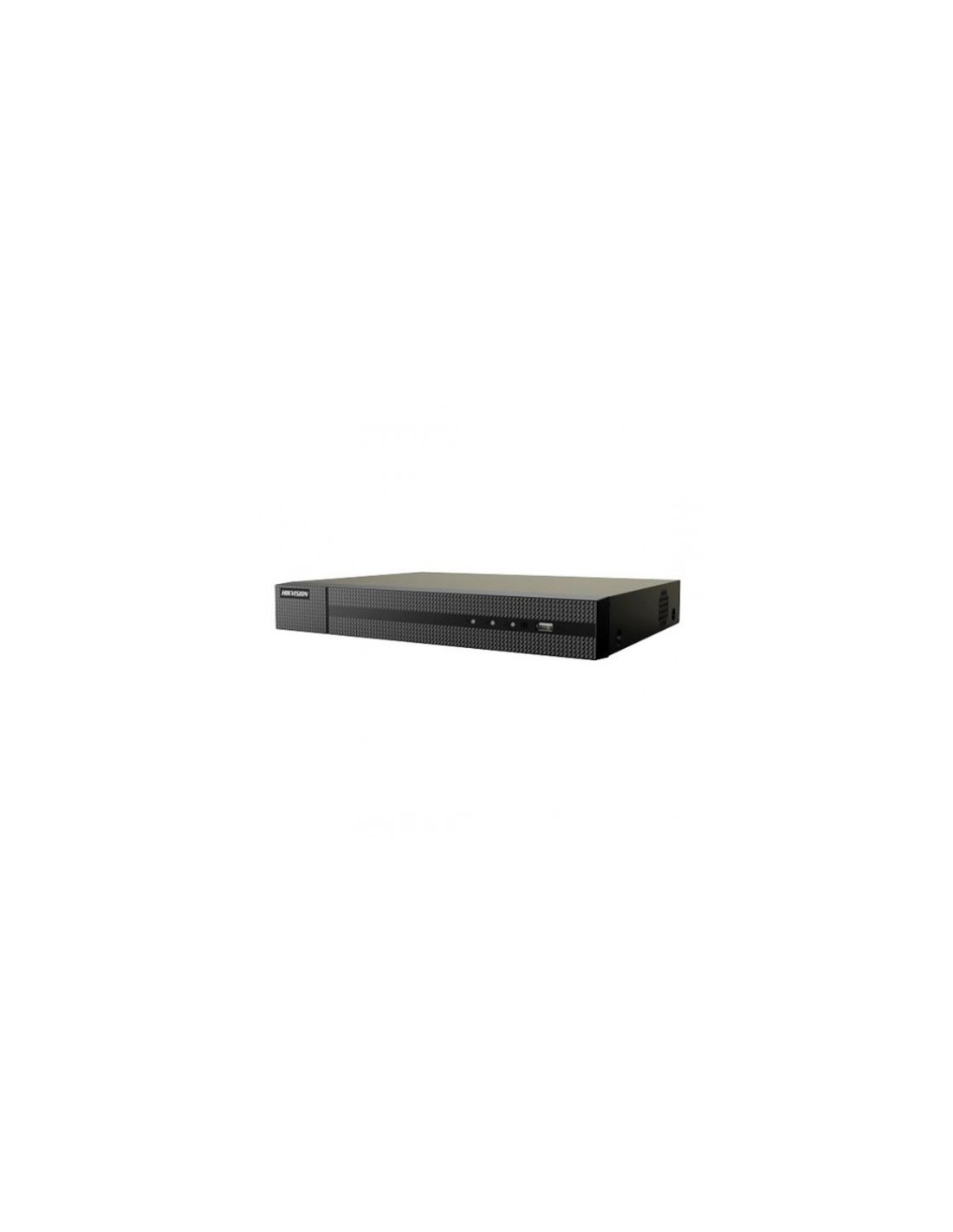

Hikvision HWN-4104MH(B) Hiwatch series 4-channel digital NVR.
4K 8mpx resolution (40Mbps input bandwidth) with H.265+ video compression technology, Onvif (multi-brand) compatibility protocol and easy P2P QR scan configuration system with dedicated Cloud HIK-Connect service.
Video recording is processed by the H.265+ compression system. This technology saves up to 50% on storage space and data traffic consumption in remote viewing, compared to the previous H.264 compression.
The menu is designed to allow everyone, even novice users, to navigate and make changes to the recorder's settings.
The DVR offers connectivity from any device including Windows, Mac, iPhone and Android applications.
The video security system is ideal for a wide range of applications: from companies to public administrations, from parks to institutional venues, from museums to airports, from villas to small contexts.
Specifications:
- NVR 4K 1U 4Ch channels with high performance processor;
- Up to 8Mpx resolution supported;
- H.265+ video compression;
- Max 40Mbps input bandwidth;
- Simultaneous HDMI / VGA video output;
- Supports 1 SATA HDDs up to 8TB, 2 USB(USB2.0);
- Mobile viewing on iPhone, iPad and Android;
- Support multi-brand network cameras - Onvif protocol;
- 1 connectable SATA interface for recording and backup;
- 1 self-adaptive 10/100/1000 Mbps network interface;
Video/Audio input | |
IP video input | 4-ch, up to 8 MP resolution |
Audio input | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
Network | |
Incoming bandwidth | 40 Mbps |
Outgoing bandwidth | 80 Mbps |
Remote connection | 16 |
Video/Audio output | |
Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
HDMI output resolution | 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output |
VGA output resolution | 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output |
Audio output | 1-ch, RCA (Linear, 1 KΩ) |
Decoding | |
Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 |
Live view/Playback resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous playback | 4-ch |
Decoding Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
Stream type | Video, Video & Audio |
Network management | |
Network protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
Camera protocol | HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO |
Hard Disk | |
SATA | 1 SATA interface |
Hard Disk Capacity | Up to 8 TB capacity for each disk |
External interface | |
Network interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
USB interface | Rear Panel: 2 × USB 2.0 |
General | |
Power supply | 12 VDC, ≤ 18 W |
Consumption (without hard disk) | ≤ 10 W |
Working temperature | -10 °C to 55 °C |
Working humidity | 10% to 90% |
Dimensions | 265 × 225 × 48 mm |
Weight | ≤ 1 kg |
Model | HWN-4104MH(B) |
Brand | Hikvision |
