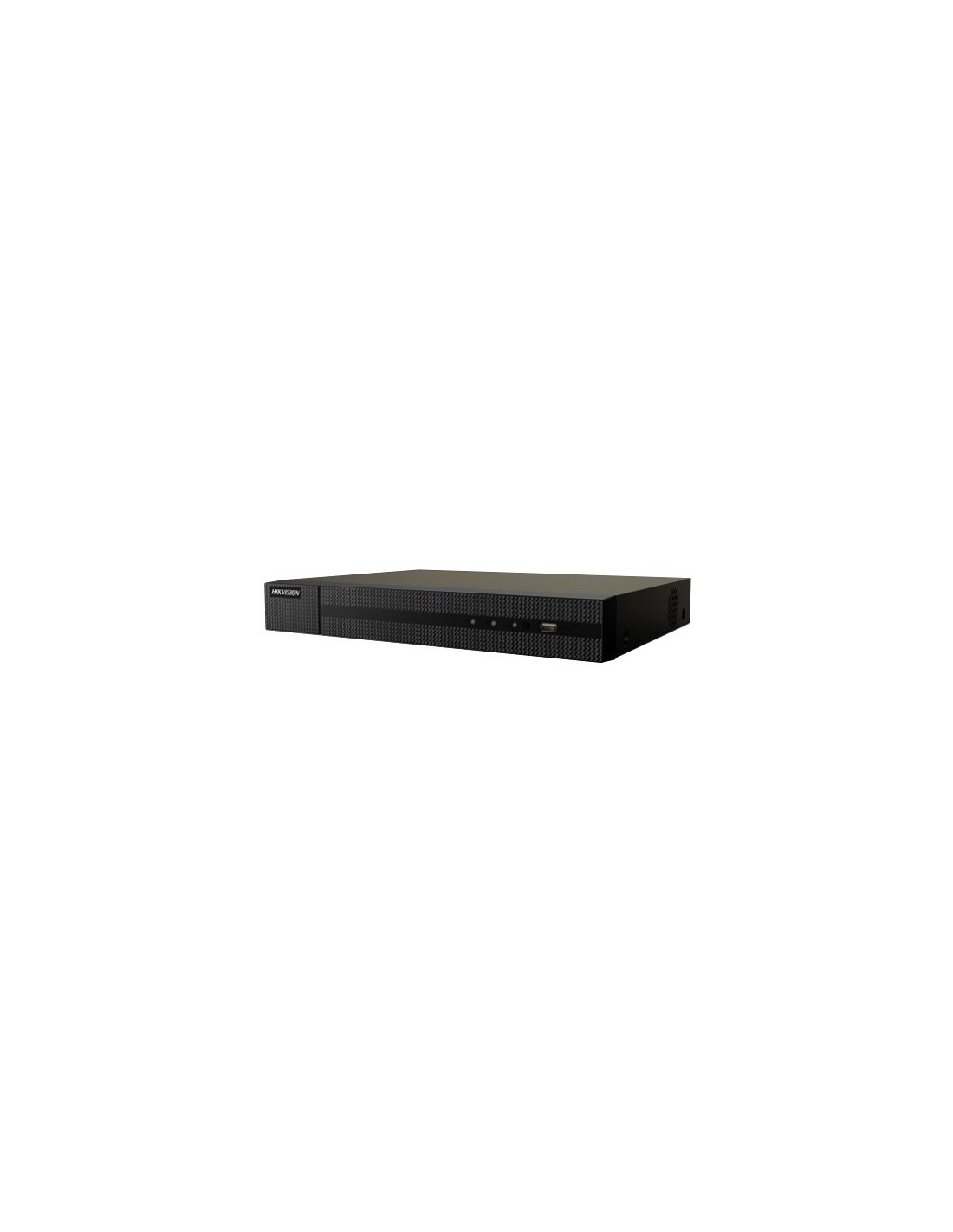

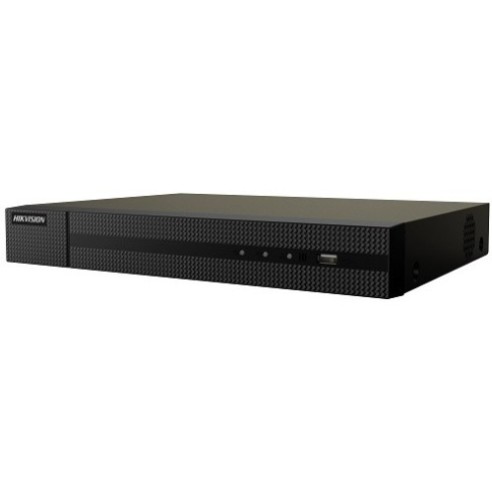

Hikvision HWN-2108MH Hiwatch series 8-channel digital NVR.
HD+ resolution at 6mpx (60Mbps input bandwidth) with H.265+ video compression technology, Onvif (multi-brand) compatibility protocol and P2P QR scan facilitated configuration system with dedicated HIK-Connect Cloud service.
HD+ video recording is processed by the H.265+ compression system. This technology saves up to 50% on storage space and data traffic consumption in remote viewing, compared to the previous H.264 compression.
The menu is designed to allow everyone, even novice users, to navigate and make changes to the recorder's settings.
The DVR offers connectivity from any device including Windows, Mac, iPhone and Android applications.
The video security system is ideal for a wide range of applications: from companies to public administrations, from parks to institutional venues, from museums to airports, from villas to small contexts.
Specifications:
- NVR 1U 8Ch channels with high performance processor
- Resolution supported up to 6Mpx
- Video compression H.265+/H.265/ H.264+/H.264 ;
- Max 60Mbps input bandwidth;
- Simultaneous HDMI / VGA video output
- Supports 1 SATA HDDs up to 6TB, 2 USB(USB2.0);
- Mobile viewing on iPhone, iPad and Android;
- Supports multi-brand network cameras - Onvif protocol;
- 1 connectable SATA interface for recording and backup;
- 1 self-adaptive 10/100 Mbps network interface
Video/Audio input | |
IP video input | 8-ch |
Network | |
Incoming bandwidth | 60 Mbps |
Outgoing bandwidth | 60 Mbps |
Remote connection | 16 |
Video/Audio output | |
Recording resolution | 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
HDMI output resolution | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA output resolution | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output |
Decoding | |
Decoding format | H.265+/H.265/ H.264+/H.264 |
Live view/Playback resolution | 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous playback | 8-ch |
Decoding Capability | 4-ch@1080p (25 fps), 1-ch@6 MP (25 fps) |
Network management | |
Network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™ |
Camera protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
Hard Disk | |
SATA | 1 SATA interface |
Hard Disk Capacity | Up to 6TB capacity for each disk |
External interface | |
Network interface | 1, RJ-45 10/100Mbps Ethernet interface |
USB interface | 2 × USB 2.0 |
POE Interface | |
Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
General | |
Power supply | 12 VDC |
Power | ≤ 18 W |
Consumption (without hard disk) | ≤ 10 W |
Working temperature | -10 to +55º C |
Working humidity | 10 % to 90 % |
Chassis | 1U chassis |
Dimensions | 260 × 225 × 48 mm |
Weight | ≤ 1 kg |
Model | HWN-2108MH |
Brand | Hikvision |
