| Contact configuration | |
| Contact configuration | 1 exchange |
| Rated current/maximum instantaneous current | 16A / 30A |
| Rated voltage / maximum switchable voltage | 250Vac / 400Vac |
| Nominal load in AC1 | 2000VA |
| Nominal load in AC15 | 1000VA |
| Single-phase motor capacity | 0.55 KW |
| Minimum switchable load | 500mW |
| Contact material | AgNi |
| Coil characteristics | |
| Nominal supply voltage | 230Vac |
| Nominal power | 1.2VA |
| General features | |
| Mechanical durability | 10 x 10⁶ cycles |
| Electrical durability | 100 x 10³ cycles |
| Switching time: excitation/de-energization | 7ms / 3ms |
| Insulation between coil and contacts | 6KV |
| Dielectric strength between open contacts | 1000Vac |
| Product information | |

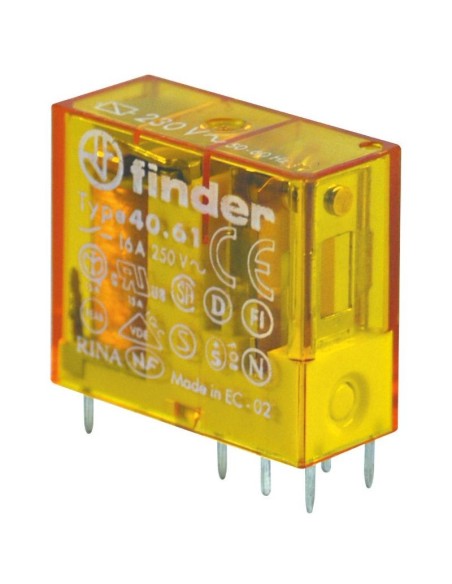

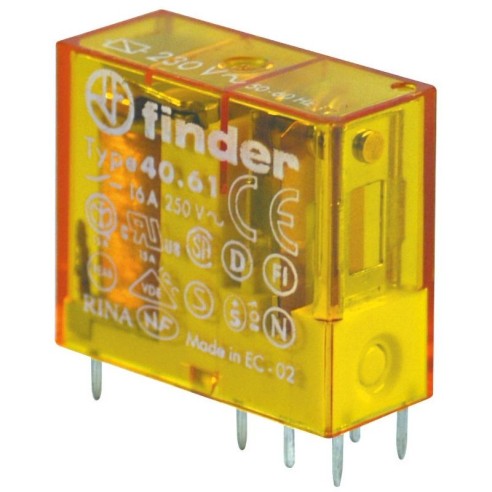

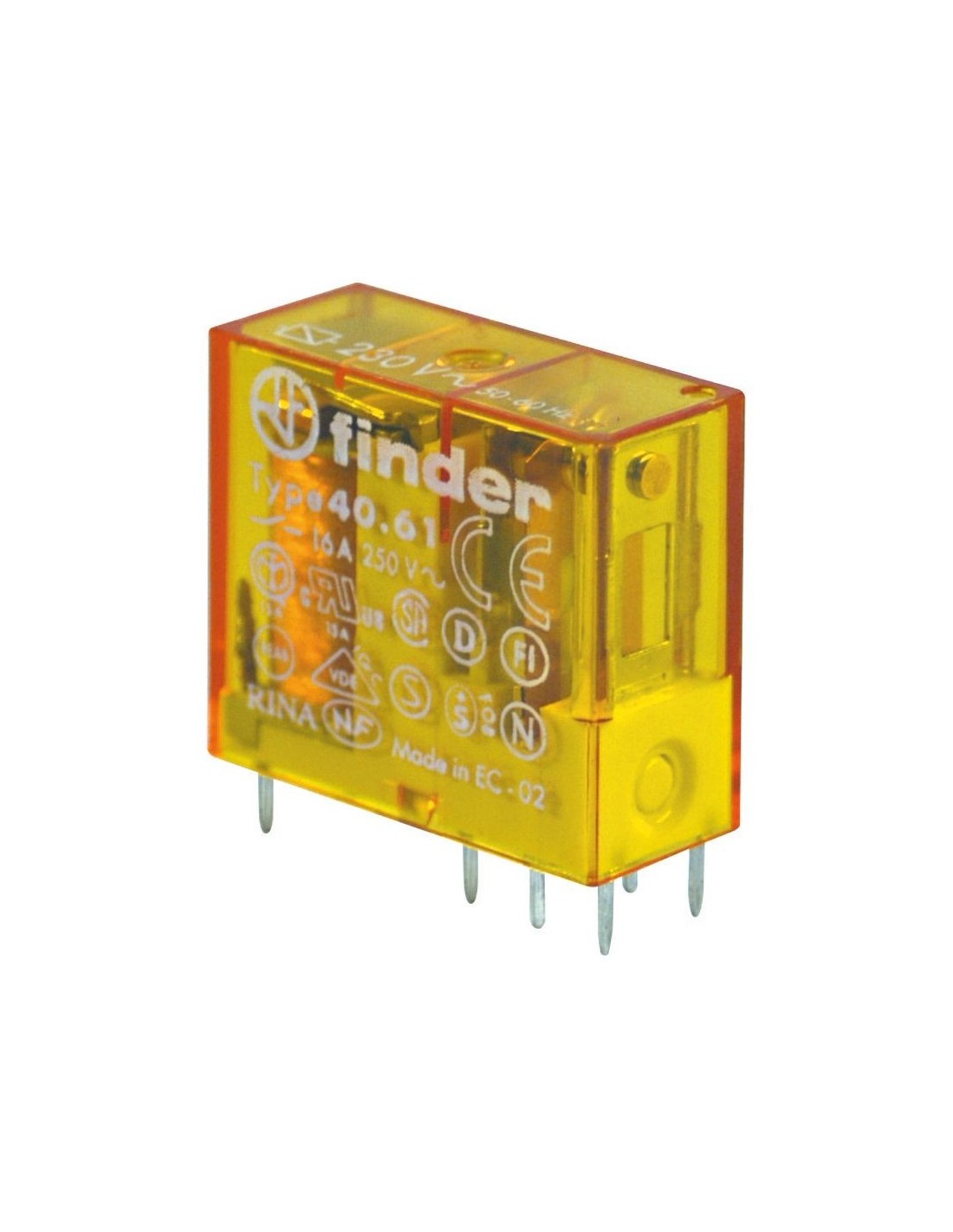

| Model | 40.61.8.240.0000 |
| Manufacturer | Finder |
