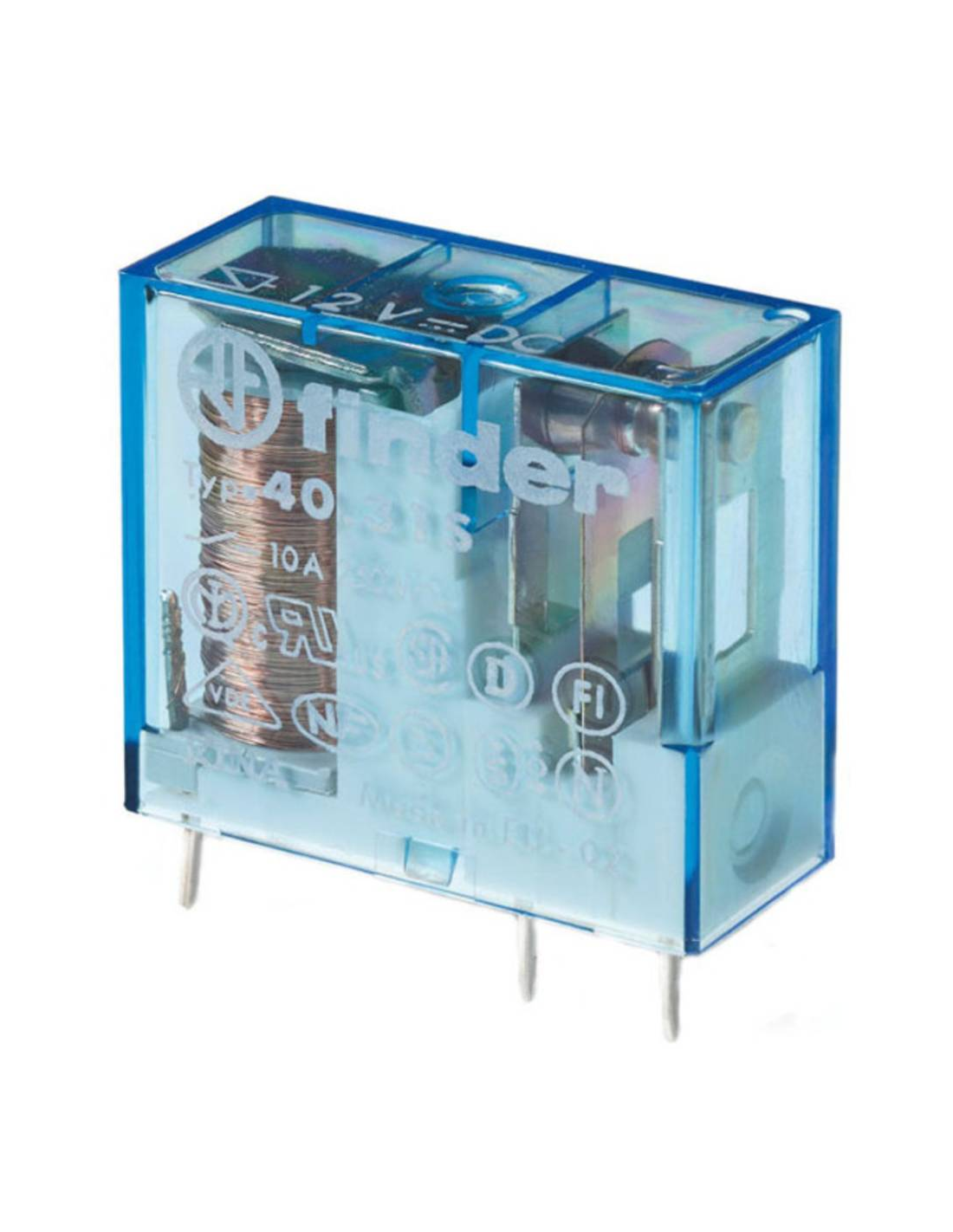

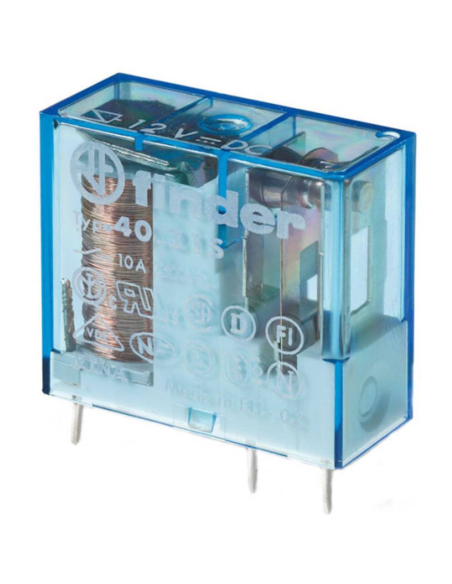

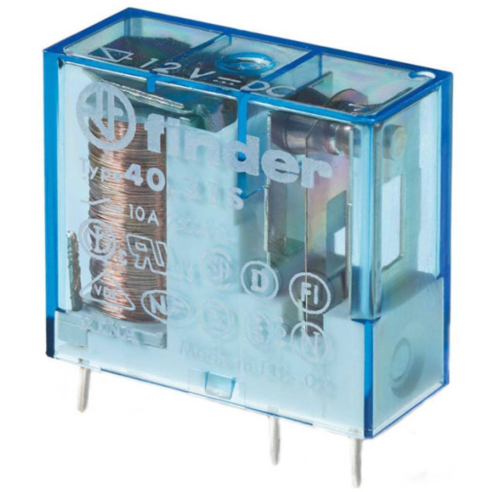

Power relay, 12 Vdc, SPST-NO, 12 A, through-hole (THT), series 40.31 - Finder 40.31.9.012.0301

Power relay, 12 Vdc, SPST-NO, 12 A, through-hole (THT), series 40.31 - Finder 40.31.9.012.0301

Name: Power relay, 12 Vdc, SPST-NO, 12 A, through-hole (THT), series 40.31 - Finder 40.31.9.012.0301
Brand: Finder
SKU: 52.130.2103001
Price: 6.2 EUR
Availability: OutOfStock

SKU 52.130.2103001

Out-of-Stock

€6.20

VAT included

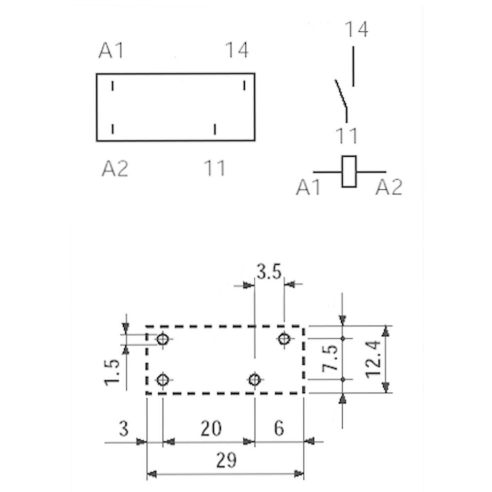

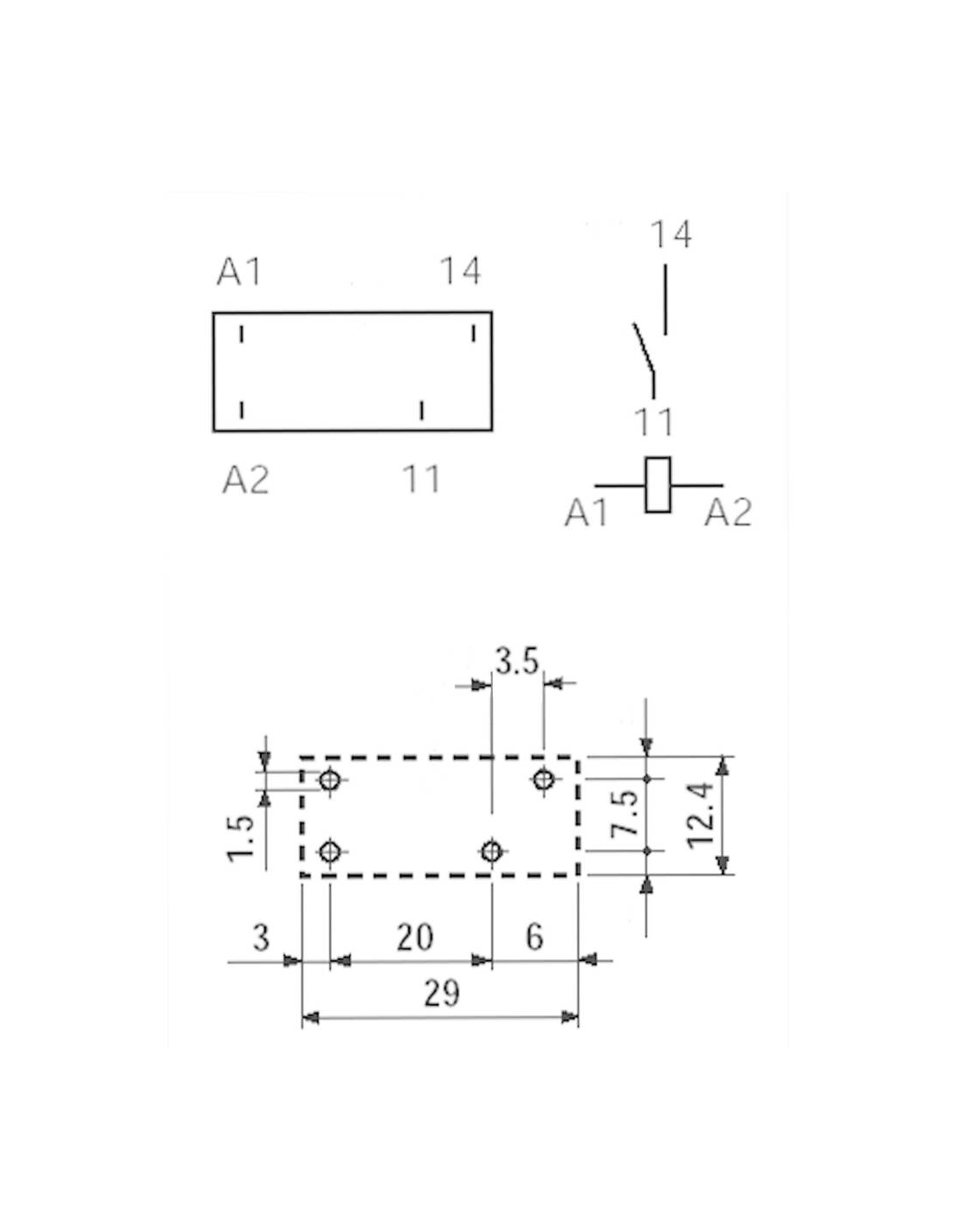

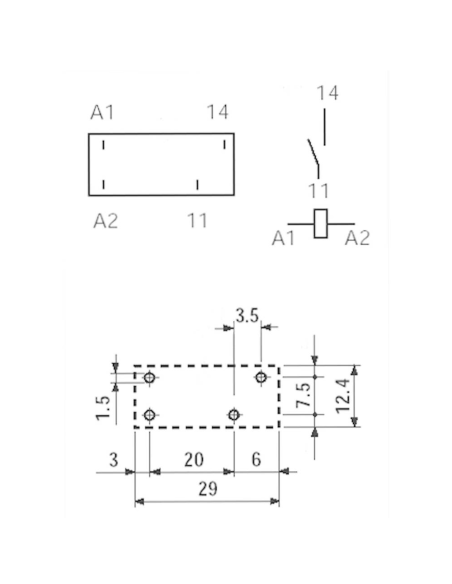

PCB mounting or plug-in on socket 95 Series, 1 NO contact, 12 A (pitch 3.5 mm).

Features:
- Terminal length 3.5 mm for PCB mounting;
- 650mW DC coil;
- 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts;
- Glow wire test compliance to EN 60335-1;
- 95 series sockets for PCB or 35 mm rail mounting (EN 60715) with Push-in, screw or spring terminals;
- EMC signalling and protection modules series 99 and timer modules type 86.30;
- Protection category: RT III - washable (special version).

Quantity	Unit price	You Save
10	€5.89	€3.10
20	€5.58	€12.40

Description

Contact configuration
Contact configuration	1 NO contact
Rated current/maximum instantaneous current	12A / 20A
Rated voltage / maximum switchable voltage	250Vac / 400Vac
Nominal load in AC1	3000VA
Nominal load in AC15	1000VA
Single-phase motor capacity	0.55 KW
Minimum switchable load	300mW
Contact material	AgNi
Coil characteristics
Nominal supply voltage	12 Vdc
Nominal power	0,65 W
General features
Mechanical durability	10 x 10⁶ cycles
Electrical durability	200 x 10³ cycles
Switching time: excitation/de-energization	7ms / 3ms
Insulation between coil and contacts	6KV
Dielectric strength between open contacts	1000Vac
Operating temperature	-40°C ~ +85°C
Protection category	RTIII
Product information
Model	40.31.9.012.0301
Manufacturer	Finder
