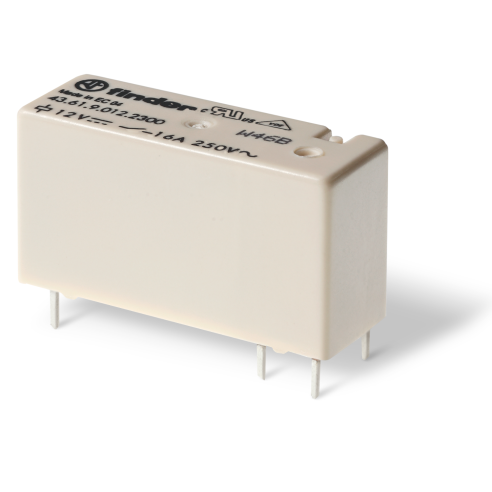

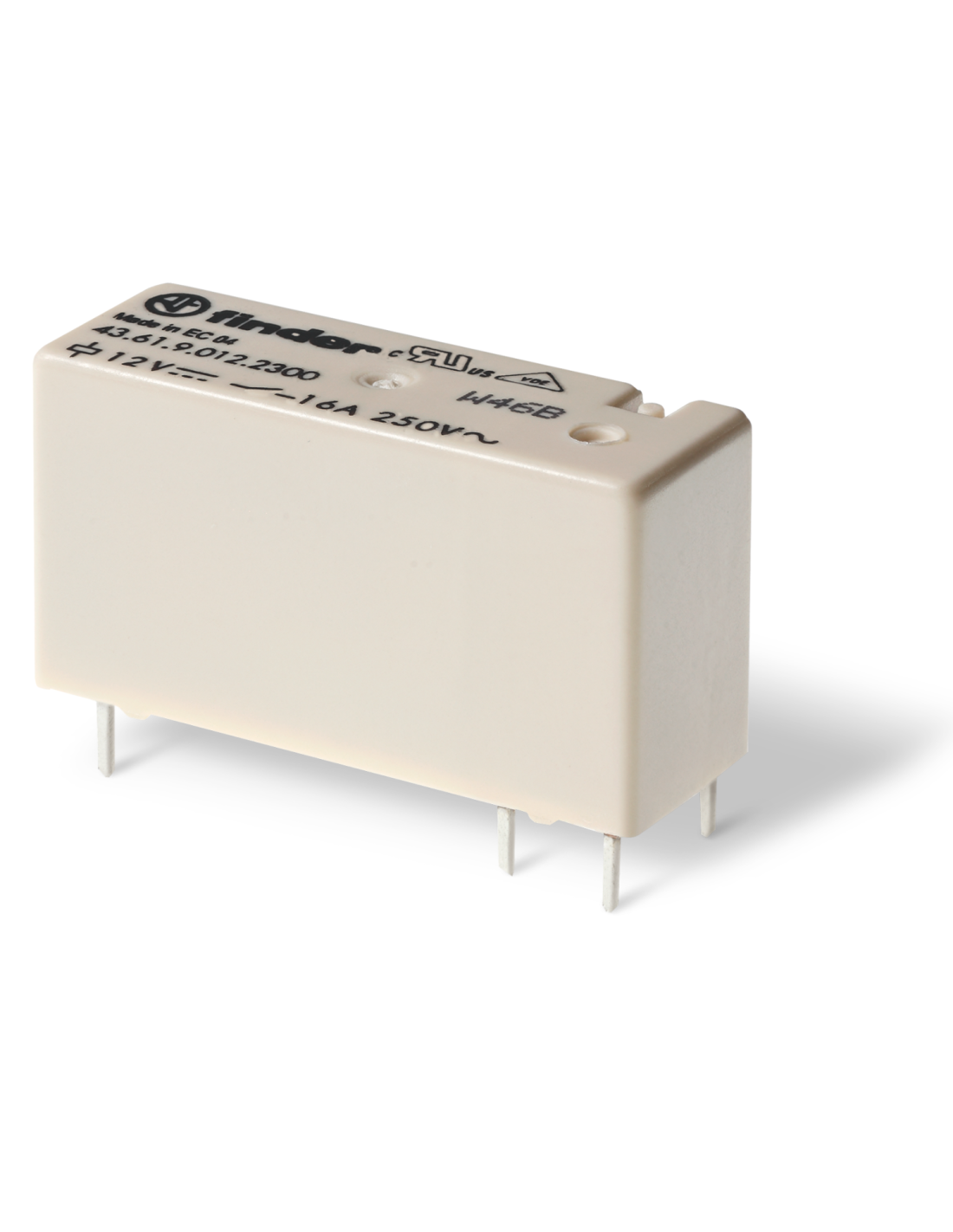

Power relay, 12 Vdc, SPST-NO, 16 A, through-hole (THT), Series 43.41 - Finder 43.61.9.012.4300

Power relay, 12 Vdc, SPST-NO, 16 A, through-hole (THT), Series 43.41 - Finder 43.61.9.012.4300

Name: Power relay, 12 Vdc, SPST-NO, 16 A, through-hole (THT), Series 43.41 - Finder 43.61.9.012.4300
Brand: Finder
SKU: 52.130.2103007
Price: 5.6 EUR
Availability: OutOfStock

SKU 52.130.2103007

Out-of-Stock

€5.60

VAT included

Mini relay type 43.41 for PCB, with 1 NO contact, 16 A, 5 mm pitch.

Features:
- AgSnO2 contacts;
- PCB or socket mounting.
- DC coil: 400 mW (16 A);
- High insulation between coil and contacts 10 mm, 6 kV (1.2/50 μs);
- Flux-proof: RT II standard;

Quantity	Unit price	You Save
10	€5.32	€2.80
20	€5.04	€11.20

Description

Contact configuration
Contact configuration	1 NO contact
Rated current/maximum instantaneous current	16A / 25A
Rated voltage / maximum switchable voltage	250Vac / 400Vac
Nominal load in AC1	4000VA
Nominal load in AC15	750VA
Minimum switchable load	300mW
Contact material	AgSnO2
Coil characteristics
Nominal supply voltage	12 Vdc
Nominal power	0,4 W
General features
Mechanical durability	10 x 10⁶ cycles
Electrical durability	50 x 10³ cycles
Switching time: excitation/de-energization	6ms / 2ms
Insulation between coil and contacts	6KV
Dielectric strength between open contacts	1000Vac
Operating temperature	-40°C ~ +85°C
Protection category	RTII
Product information
Model	43.61.9.012.4300
Manufacturer	Finder
