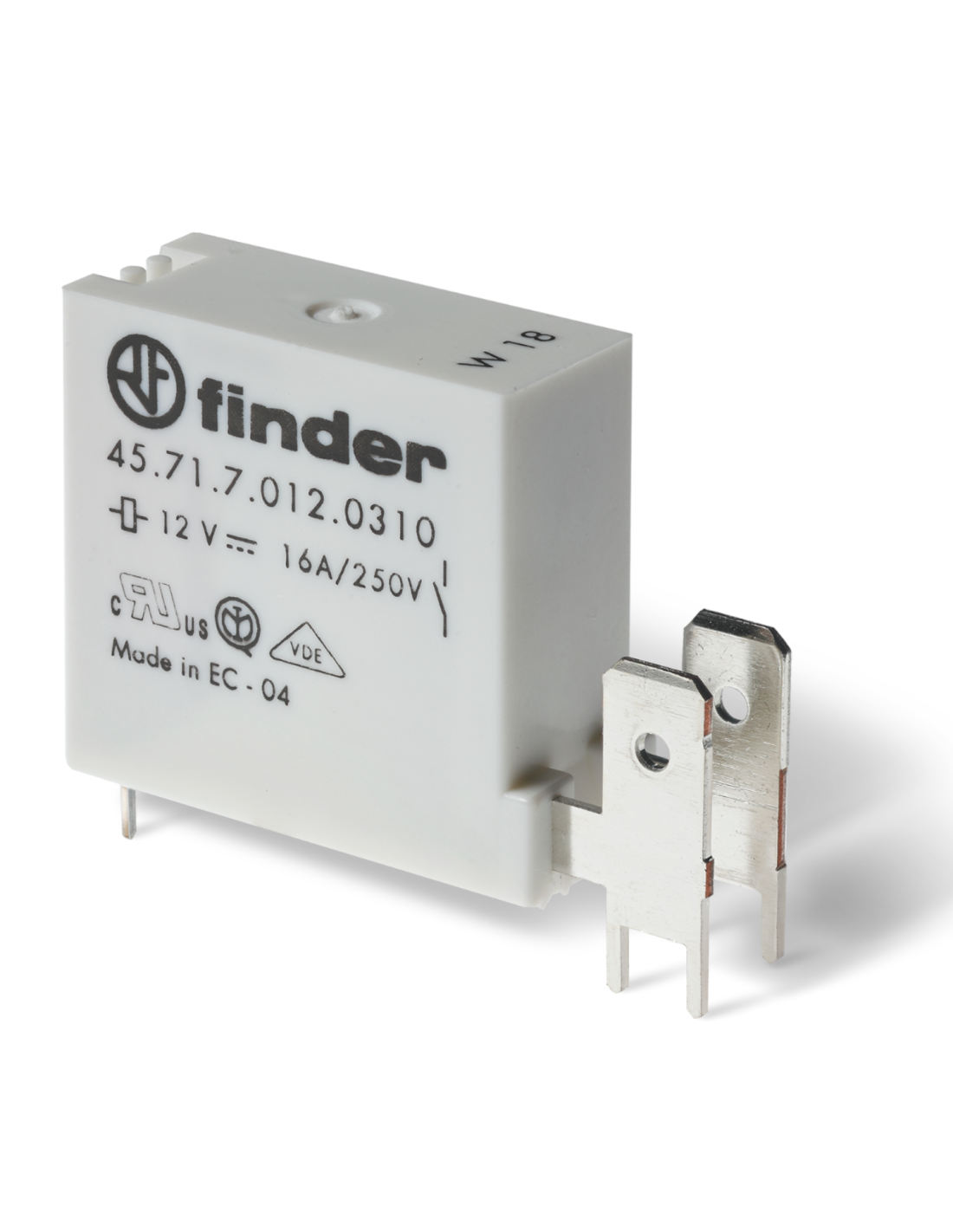

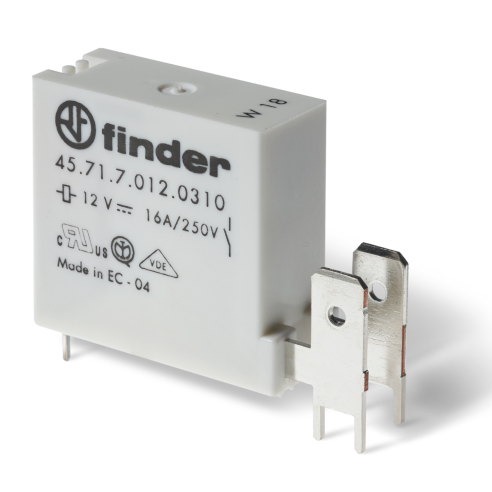

Power relay, with 250 faston, 12 Vdc, SPST-NO, 16 A, through-hole (THT), 45.71 series - Finder 45.71.7.012.0310

Power relay, with 250 faston, 12 Vdc, SPST-NO, 16 A, through-hole (THT), 45.71 series - Finder 45.71.7.012.0310

Name: Power relay, with 250 faston, 12 Vdc, SPST-NO, 16 A, through-hole (THT), 45.71 series - Finder 45.71.7.012.0310
Brand: Finder
SKU: 52.130.2103009
Price: 7.09 EUR
Availability: InStock

SKU 52.130.2103009

In stock 3 Items

€7.09

VAT included

Mini relay for PCB, 1 NO contact, for ambient temperature up to +125 °C.

Features:
- connection via Faston 250;
- 1 normally open contact;
- Max. ambient temperature: +125 °C;
- Sensitive DC coil - 360 mW;
- Reinforced insulation between coil and contacts according to EN 60335-1, EN 50178, EN 60204. Air and creepage separation of 8 mm;
- 6 kV (1.2/50 μs) insulation between coil and contacts;
- Flux-proof: RT II.

Quantity	Unit price	You Save
10	€6.74	€3.55
20	€6.38	€14.18

Description

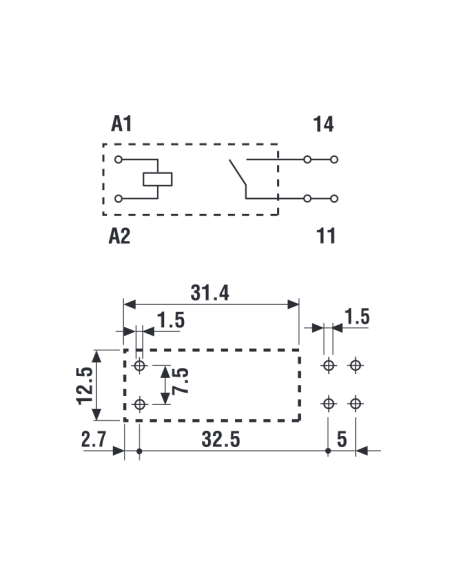

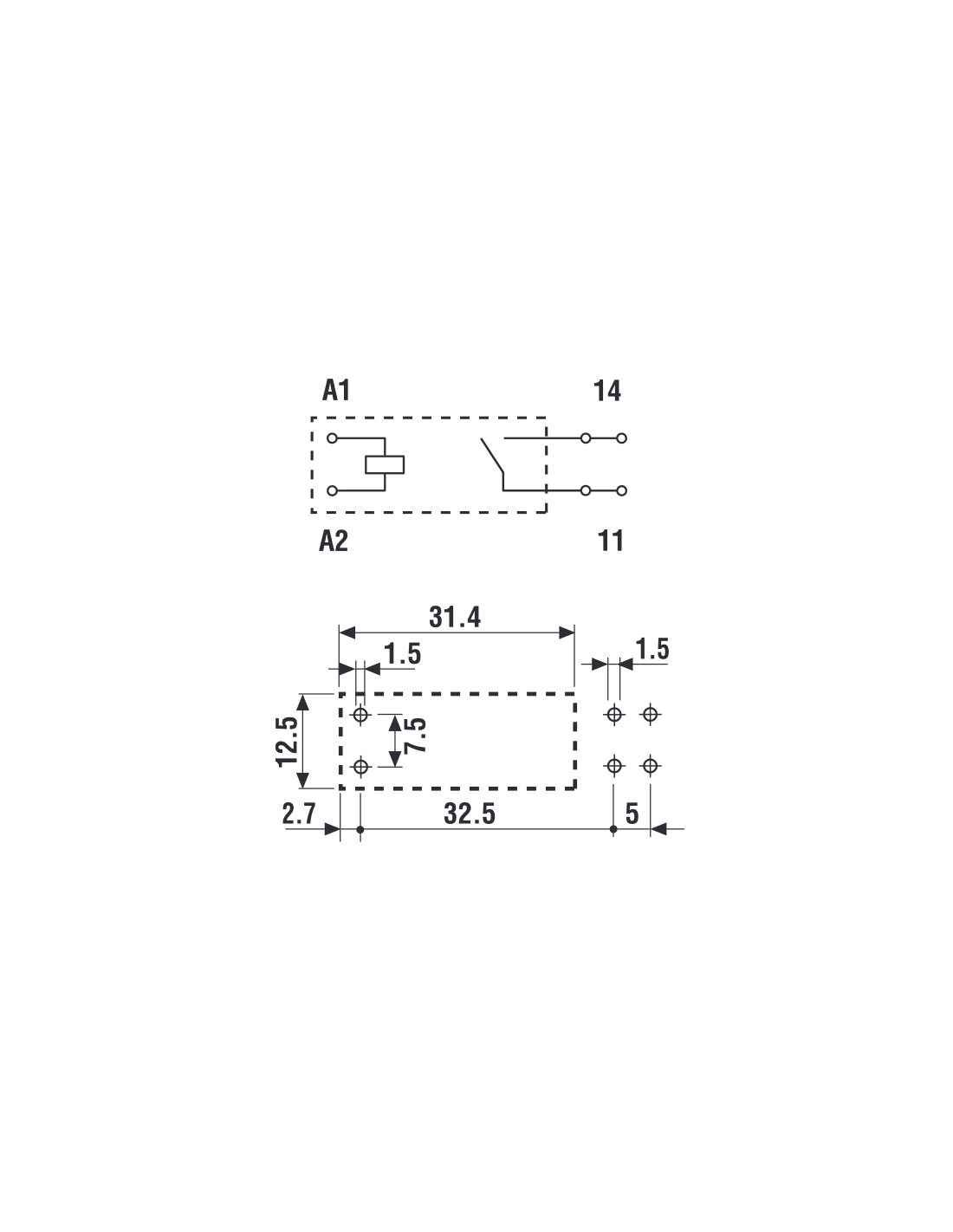

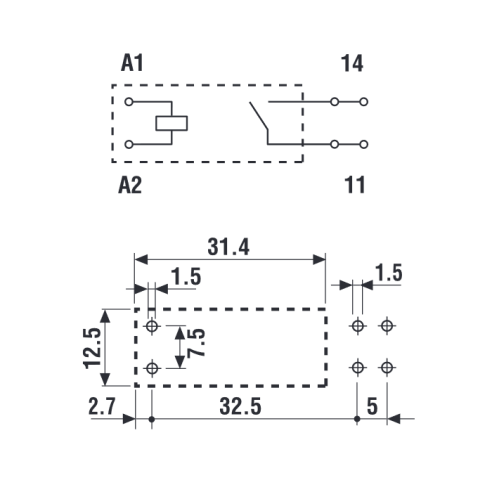

Contact configuration
Contact configuration	1 NO contact
Rated current/maximum instantaneous current	16A / 30A
Rated voltage / maximum switchable voltage	250Vac / 400Vac
Nominal load in AC1	4000VA
Nominal load in AC15	750VA
Single-phase motor capacity	0.55 KW
Minimum switchable load	500mW
Contact material	AgNi
Coil characteristics
Nominal supply voltage	12 Vdc
Nominal power	0,36 W
General features
Mechanical durability	10 x 10⁶ cycles
Electrical durability	100 x 10³ cycles
Switching time: excitation/de-energization	10ms / 2ms
Insulation between coil and contacts	6KV
Dielectric strength between open contacts	1000Vac
Operating temperature	-40°C ~ +125°C
Protection category	RTII
Product information
Model	45.71.7.012.0310
Manufacturer	Finder
