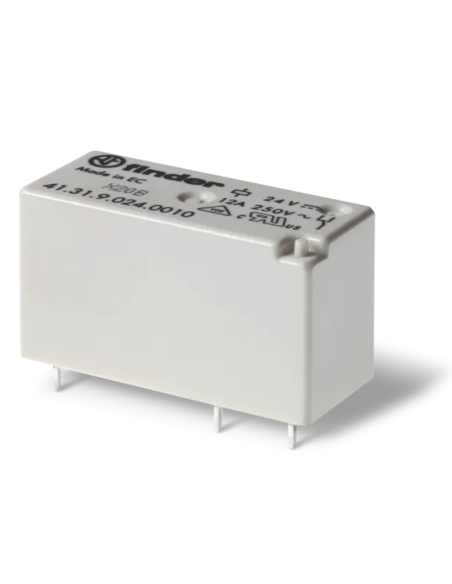

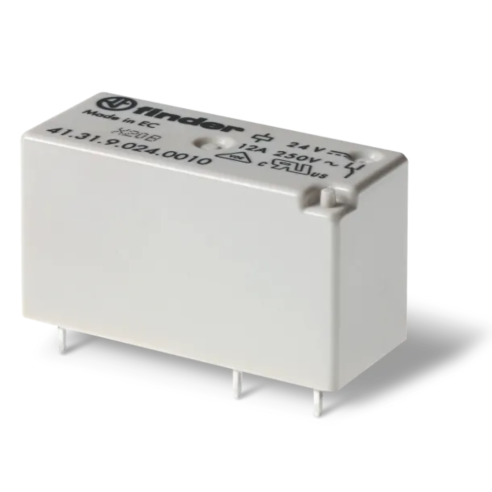

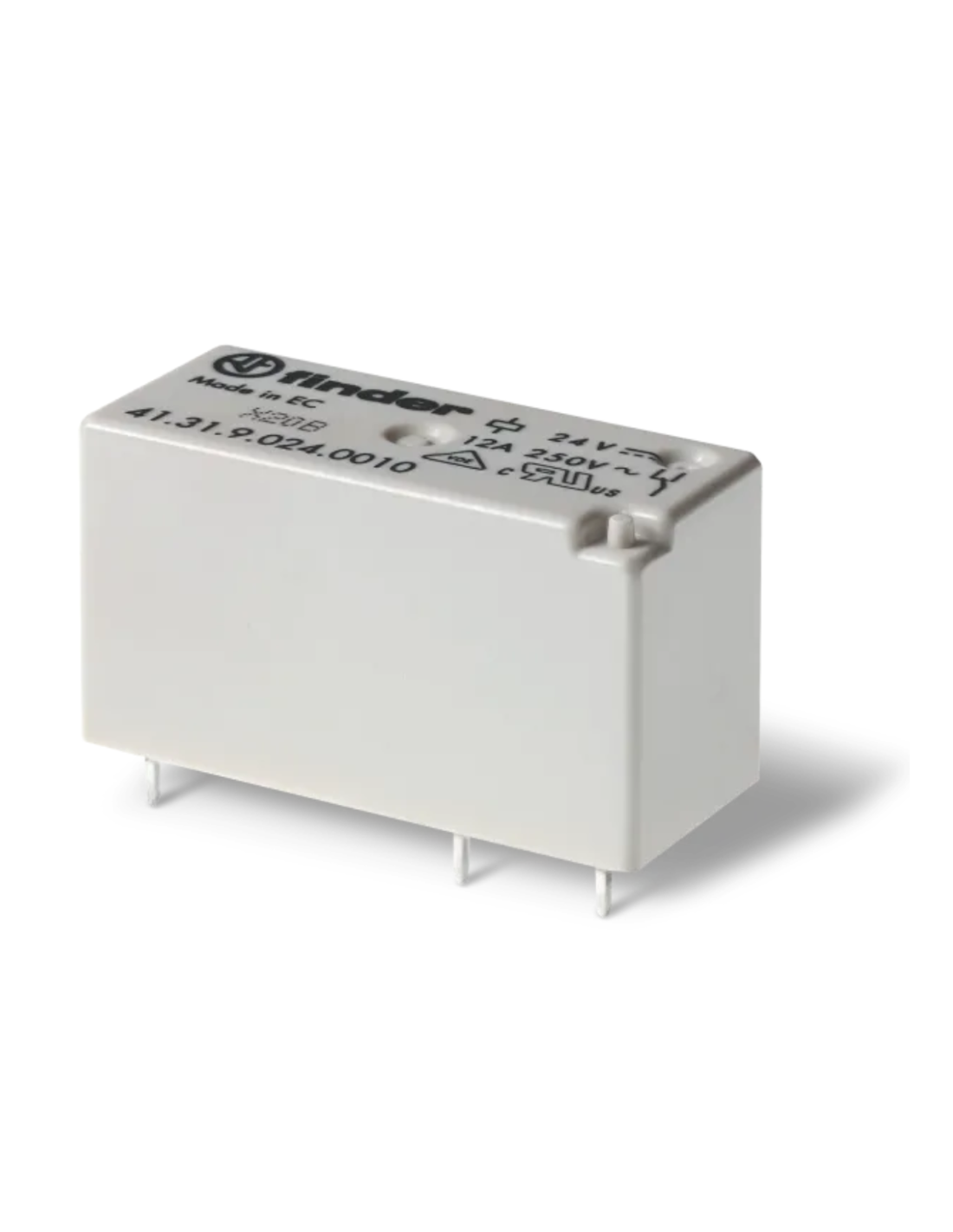

Low profile relays, 12 Vdc, SPDT, 12 A, through-hole (THT), series 41.31 - Finder 41.31.9.012.0010

Name: Low profile relays, 12 Vdc, SPDT, 12 A, through-hole (THT), series 41.31 - Finder 41.31.9.012.0010
Brand: Finder
SKU: 52.130.2403014
Price: 6.2 EUR
Availability: OutOfStock

SKU 52.130.2403014

Out-of-Stock

€6.20

VAT included

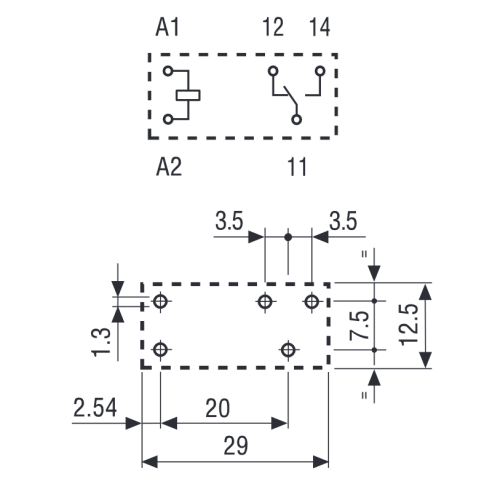

PCB mini relay 1 exchange 12 A (3.5 mm pitch).

Features:
- Direct PCB or socket mounting, 35 mm rail mounting (EN 60715) on sockets with sleeve or spring terminals;
- DC coil;
- 8 mm, 6 kV (1.2/50 μs) between coil and contacts;
- Flux-proof: RT II standard;

Quantity	Unit price	You Save
10	€5.89	€3.10
20	€5.58	€12.40

Description

Contact configuration
Contact configuration	1 exchange
Rated current/maximum instantaneous current	12A / 25A
Rated voltage / maximum switchable voltage	250Vac / 400Vac
Nominal load in AC1	3000VA
Nominal load in AC15	600VA
Single-phase motor capacity	0.5 KW
Minimum switchable load	300mW
Contact material	AgNi
Coil characteristics
Nominal supply voltage	12 Vdc
Nominal power	0,75 W
General features
Mechanical durability	10 x 10⁶ cycles
Electrical durability	60 x 10³ cycles
Switching time: excitation/de-energization	8ms / 6ms
Insulation between coil and contacts	6KV
Dielectric strength between open contacts	1000Vac
Operating temperature	-40°C ~ +70°C
Protection category	RTII
Product information
Model	41.31.9.012.0010
Manufacturer	Finder
