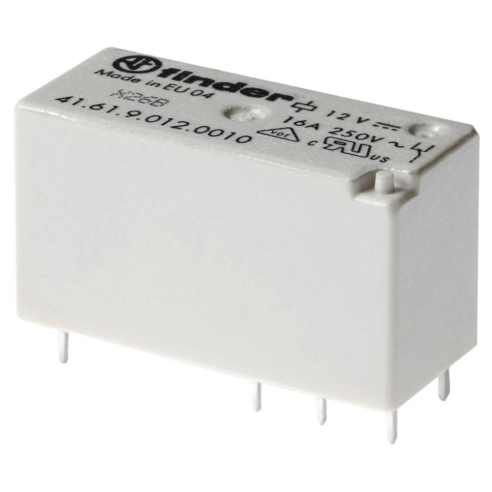

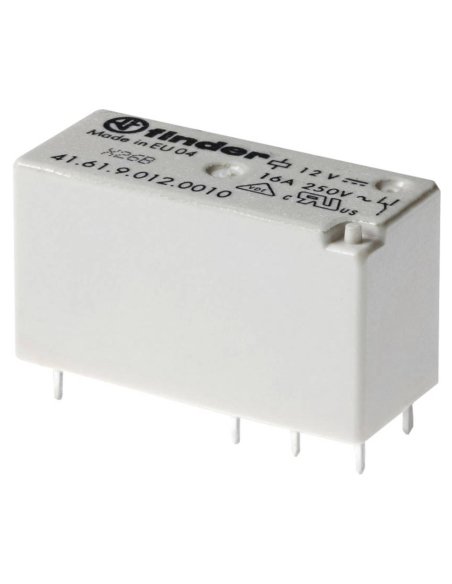

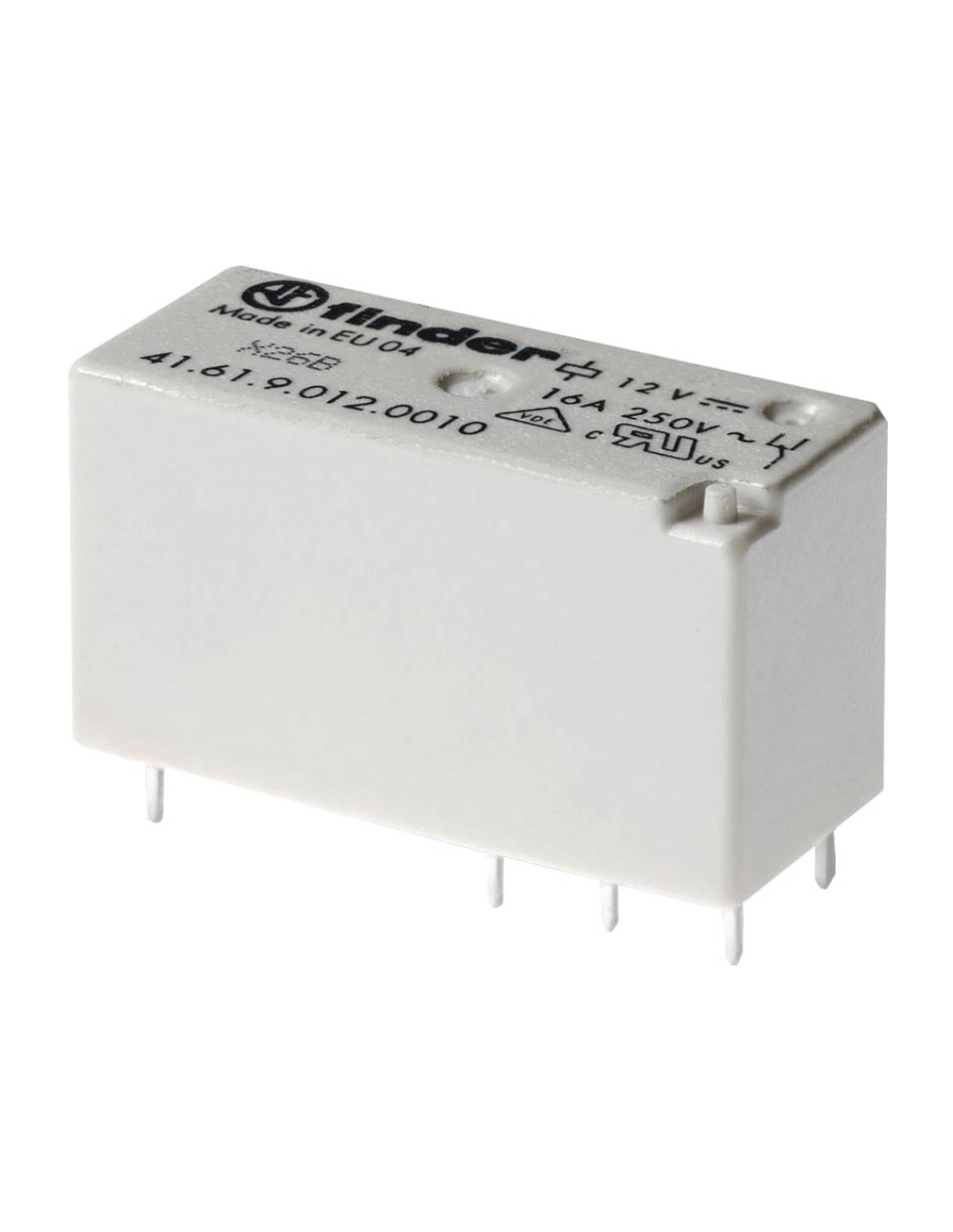

Low profile relay, 12 Vdc, SPDT, 16 A, through-hole (THT), 41.61 series - Finder 41.61.9.012.4010

Name: Low profile relay, 12 Vdc, SPDT, 16 A, through-hole (THT), 41.61 series - Finder 41.61.9.012.4010
Brand: Finder
SKU: 52.130.2403016
Price: 7.6 EUR
Availability: OutOfStock

SKU 52.130.2403016

Out-of-Stock

€7.60

VAT included

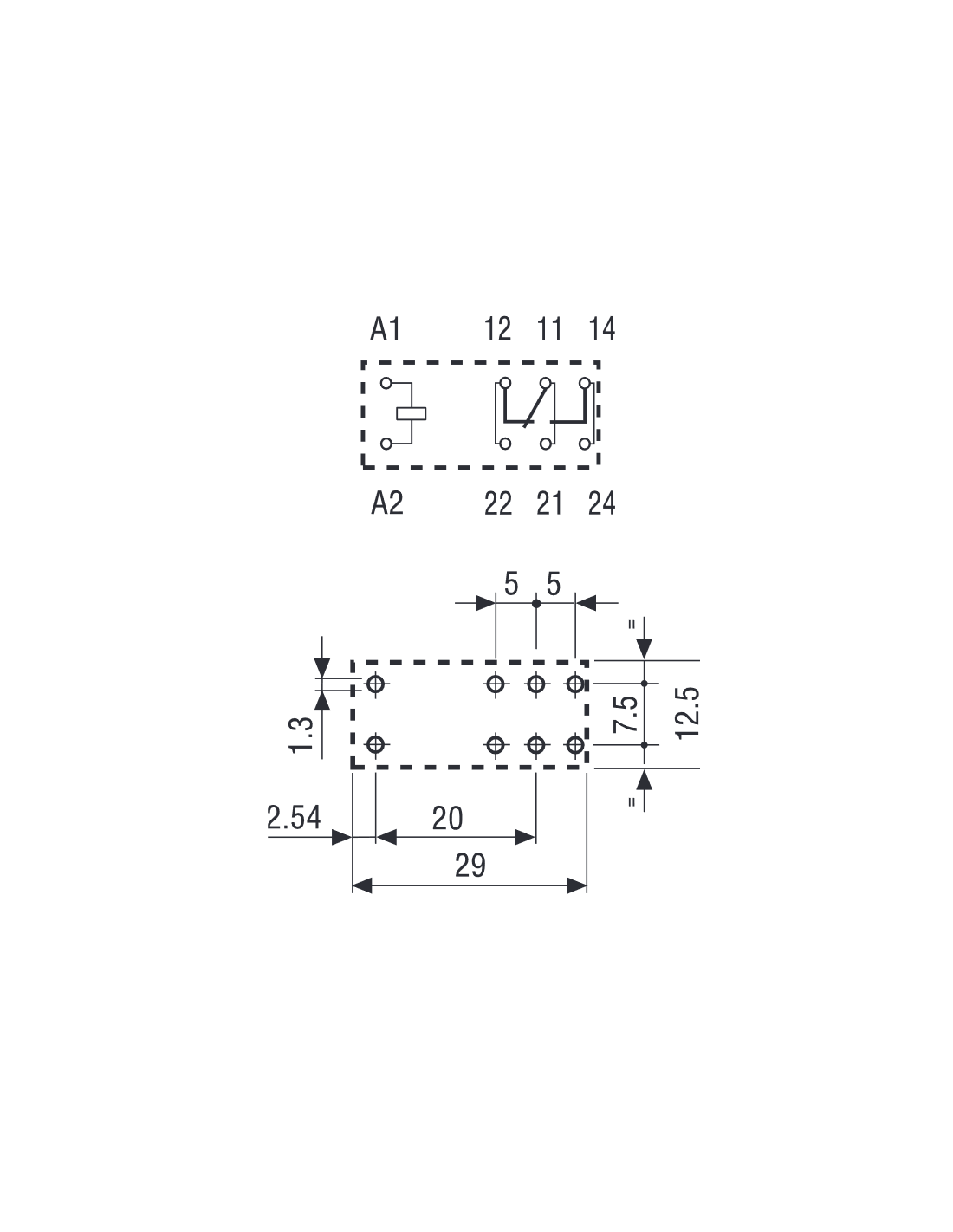

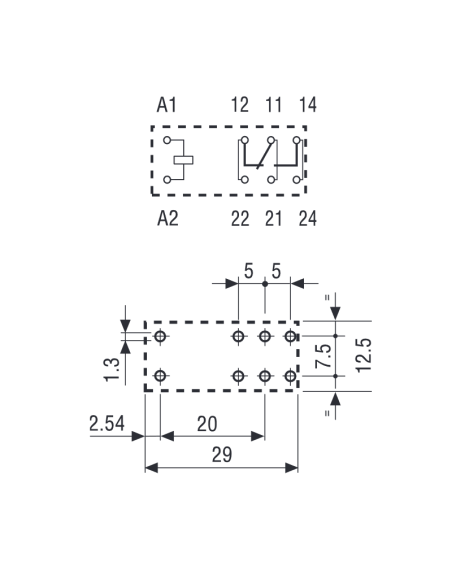

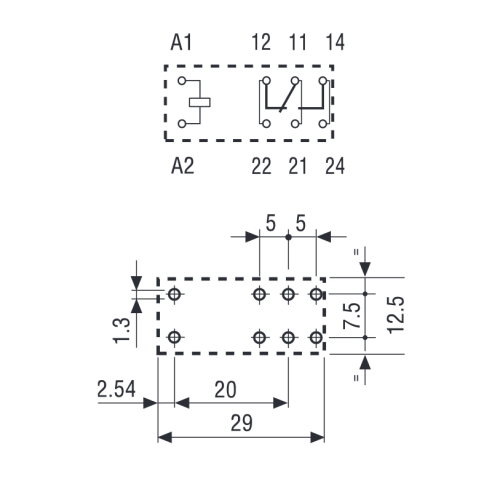

PCB mini relay 1 exchange 16 A (5 mm pitch).

Features:
- AgSnO2 contacts;
- Direct PCB or socket mounting, 35 mm rail mounting (EN 60715) on sockets with sleeve or spring terminals;
- DC coil;
- 8 mm, 6 kV (1.2/50 μs) between coil and contacts;
- Flux-proof: RT II standard;

Quantity	Unit price	You Save
10	€7.22	€3.80
20	€6.84	€15.20

Description

Contact configuration
Contact configuration	1 exchange
Rated current/maximum instantaneous current	16A / 30A
Rated voltage / maximum switchable voltage	250Vac / 400Vac
Nominal load in AC1	4000VA
Nominal load in AC15	750VA
Single-phase motor capacity	0.5 KW
Minimum switchable load	300mW
Contact material	AgSnO2
Coil characteristics
Nominal supply voltage	12 Vdc
Nominal power	0,75 W
General features
Mechanical durability	10 x 10⁶ cycles
Electrical durability	50 x 10³ cycles
Switching time: excitation/de-energization	8ms / 6ms
Insulation between coil and contacts	6KV
Dielectric strength between open contacts	1000Vac
Operating temperature	-40°C ~ +85°C
Protection category	RTII
Product information
Model	41.61.9.012.4010
Manufacturer	Finder
