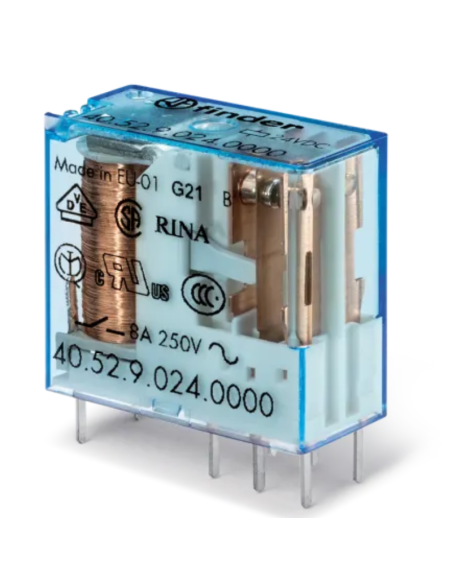

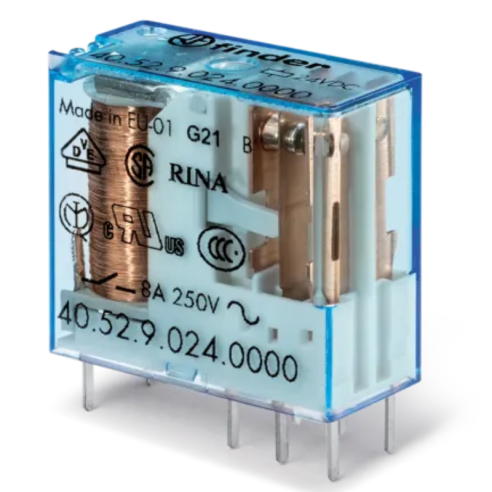

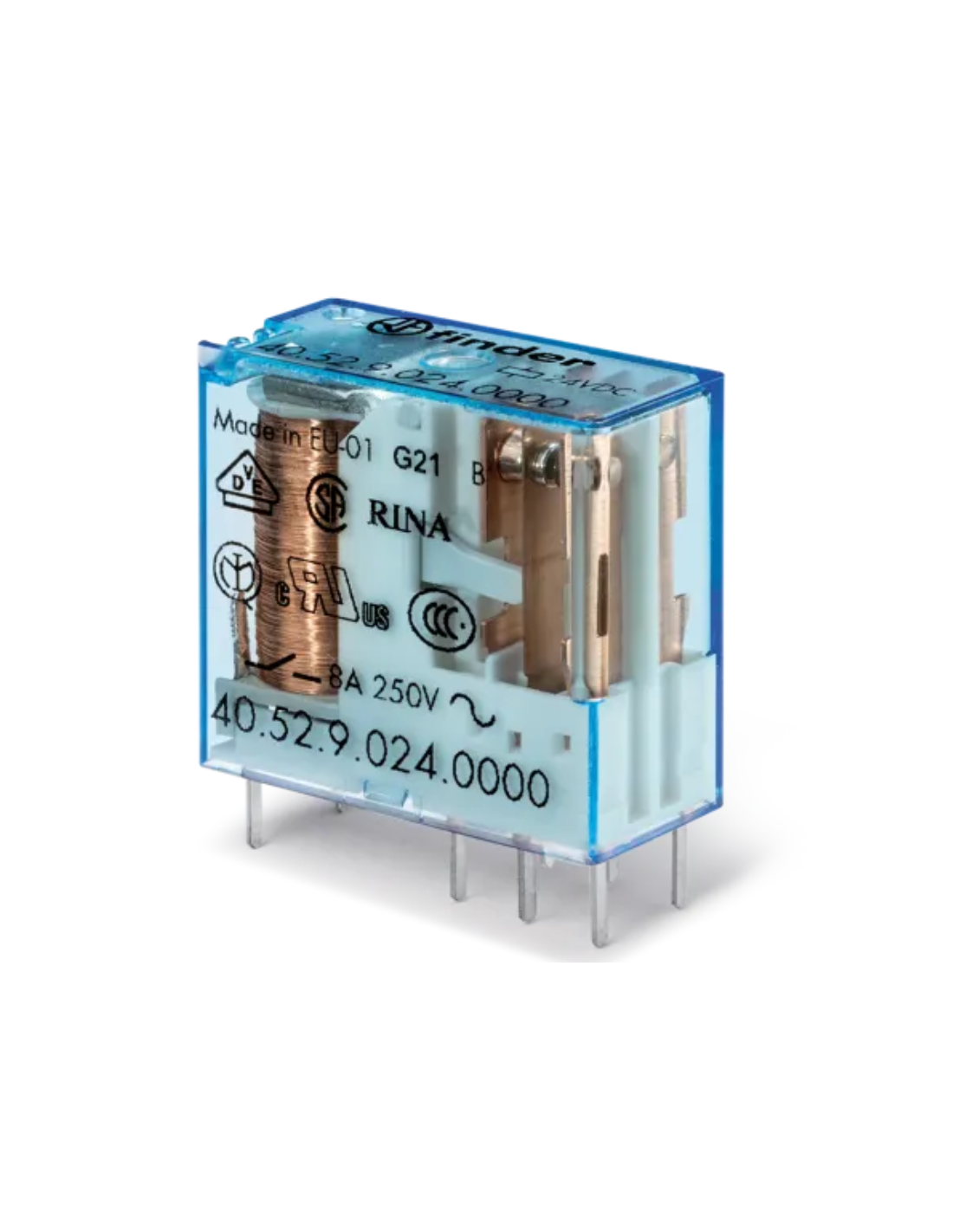

Power relay, 9 Vdc, DPDT, 8 A, through-hole (THT), 40.52 series - Finder 40.52.7.009.0000

Power relay, 9 Vdc, DPDT, 8 A, through-hole (THT), 40.52 series - Finder 40.52.7.009.0000

Name: Power relay, 9 Vdc, DPDT, 8 A, through-hole (THT), 40.52 series - Finder 40.52.7.009.0000
Brand: Finder
SKU: 52.130.2602002
Price: 8.52 EUR
Availability: InStock

SKU 52.130.2602002

In stock 4 Items

€8.52

VAT included

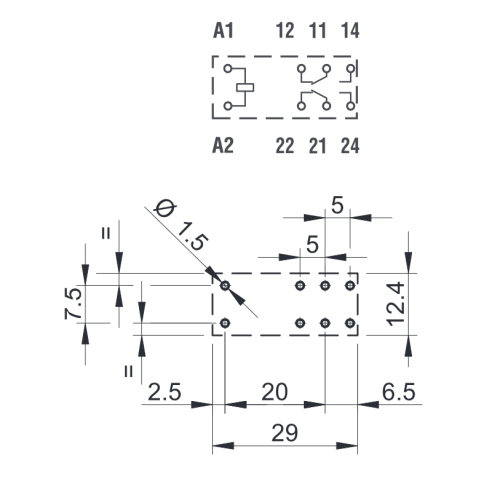

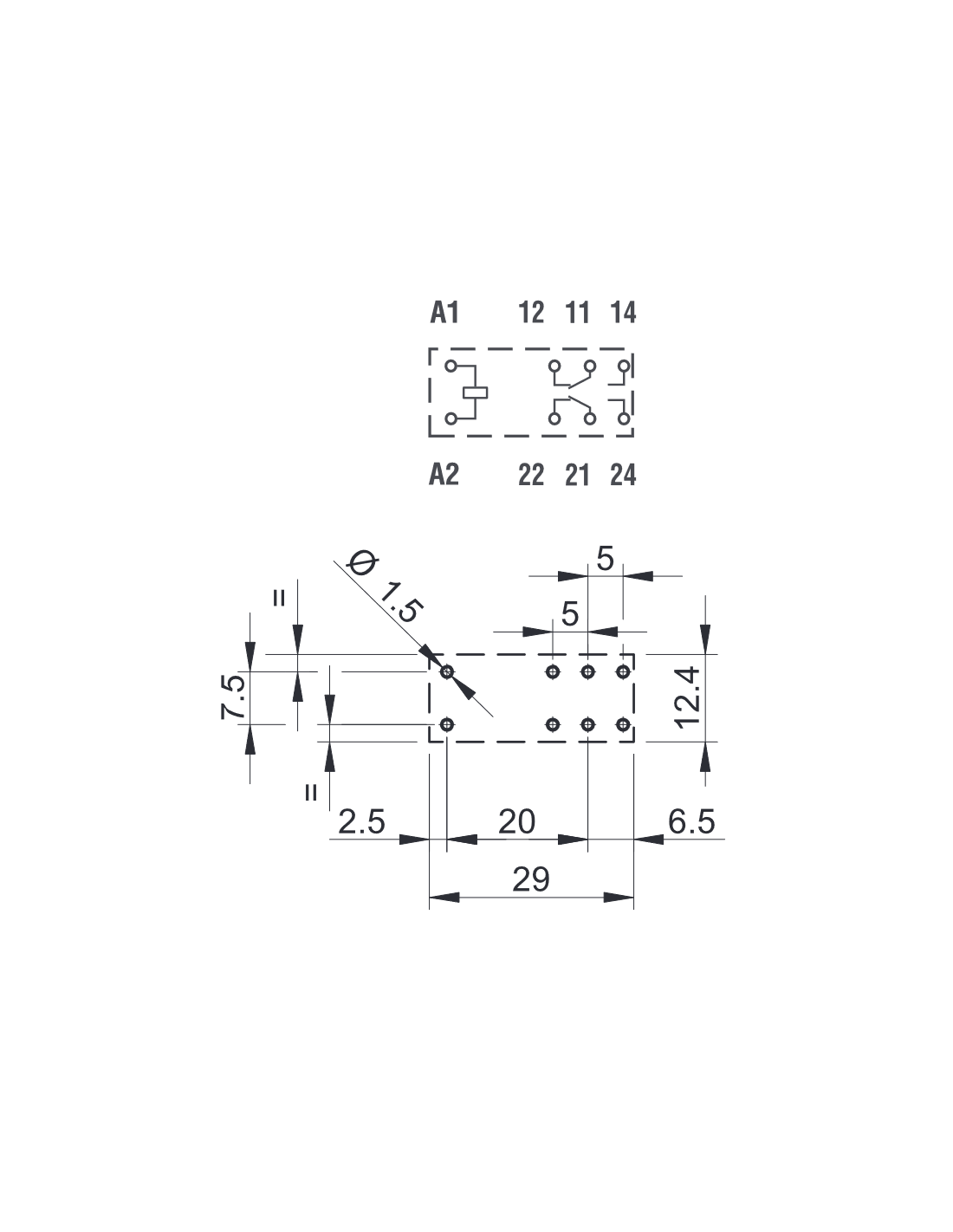

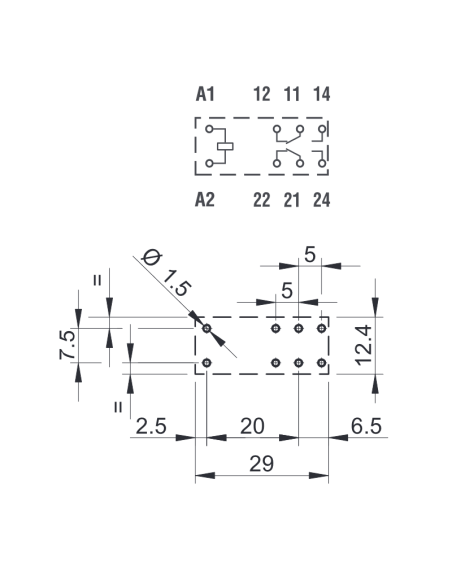

PCB mounting or plug-in on socket Series 95, 2 exchanges 8 A (pitch 5.0 mm).

Features:

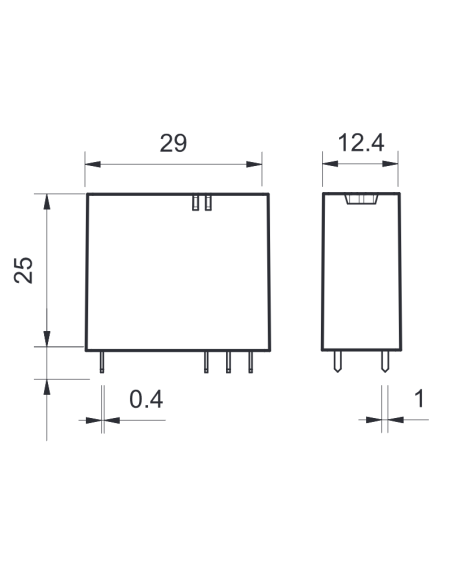

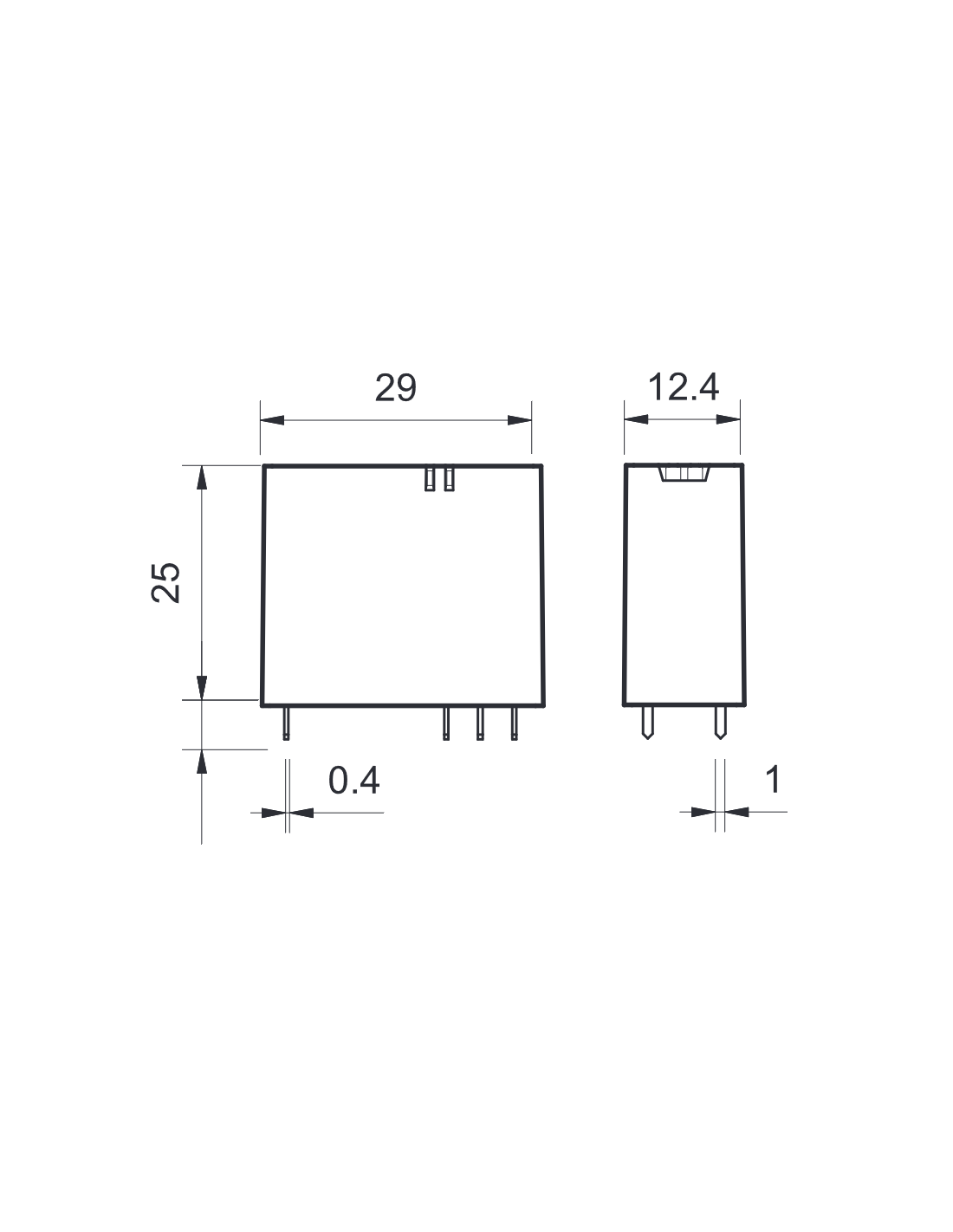

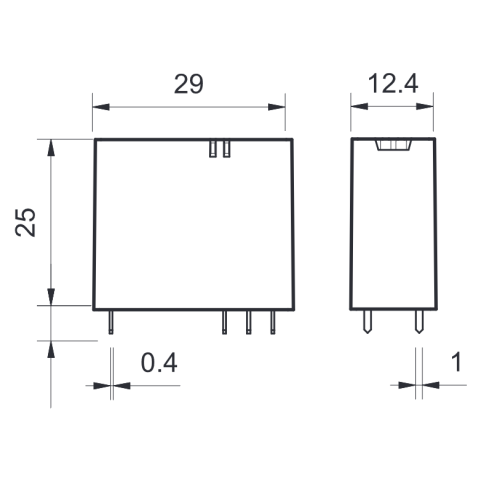

- Terminal length 5.3 mm for PCB mounting;
- Sensitive DC coil - 500mW;
- 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts;
- Glow wire test compliance to EN 60335-1;
- 95 series sockets for PCB, or 35 mm rail mounting (EN 60715) with Push-in, screw or spring terminals;
- EMC signalling and protection modules series 99 and timer modules type 86.30;
- Protection category: RT II - flameproof (Standard).

Quantity	Unit price	You Save
10	€8.09	€4.26
20	€7.67	€17.04

Description

Contact configuration
Contact configuration	2 exchanges
Rated current/maximum instantaneous current	8A / 15A
Rated voltage / maximum switchable voltage	250Vac / 400Vac
Nominal load in AC1	2000VA
Nominal load in AC15	750VA
Single-phase motor capacity	0.37 KW
Minimum switchable load	300mW
Contact material	AgNi
Coil characteristics
Nominal supply voltage	9 Vdc
Nominal power	0,5 W
General features
Mechanical durability	10 x 10⁶ cycles
Electrical durability	100 x 10³ cycles
Switching time: excitation/de-energization	7ms / 3ms
Insulation between coil and contacts	6KV
Dielectric strength between open contacts	1000Vac
Operating temperature	-40°C ~ +85°C
Protection category	RTII
Product information
Model	40.52.7.009.0000
Manufacturer	Finder
