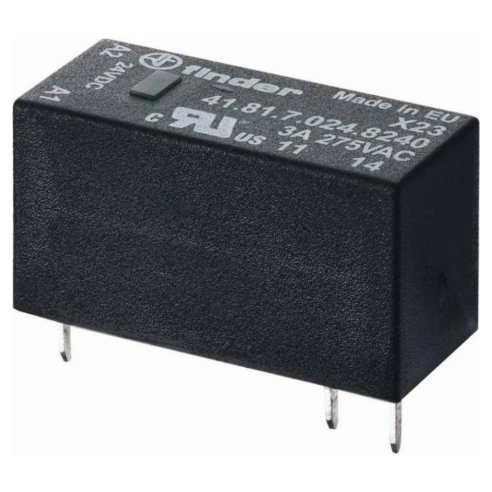

Solid-state relay, low profile, 24Vdc, SPST-NO, 5 A, switching voltage 24Vdc, series 41.81 - Finder 41.81.7.024.9024

Name: Solid-state relay, low profile, 24Vdc, SPST-NO, 5 A, switching voltage 24Vdc, series 41.81 - Finder 41.81.7.024.9024
Brand: Finder
SKU: 52.130.7104004
Price: 33.6 EUR
Availability: OutOfStock

SKU 52.130.7104004

Out-of-Stock

€33.60

VAT included

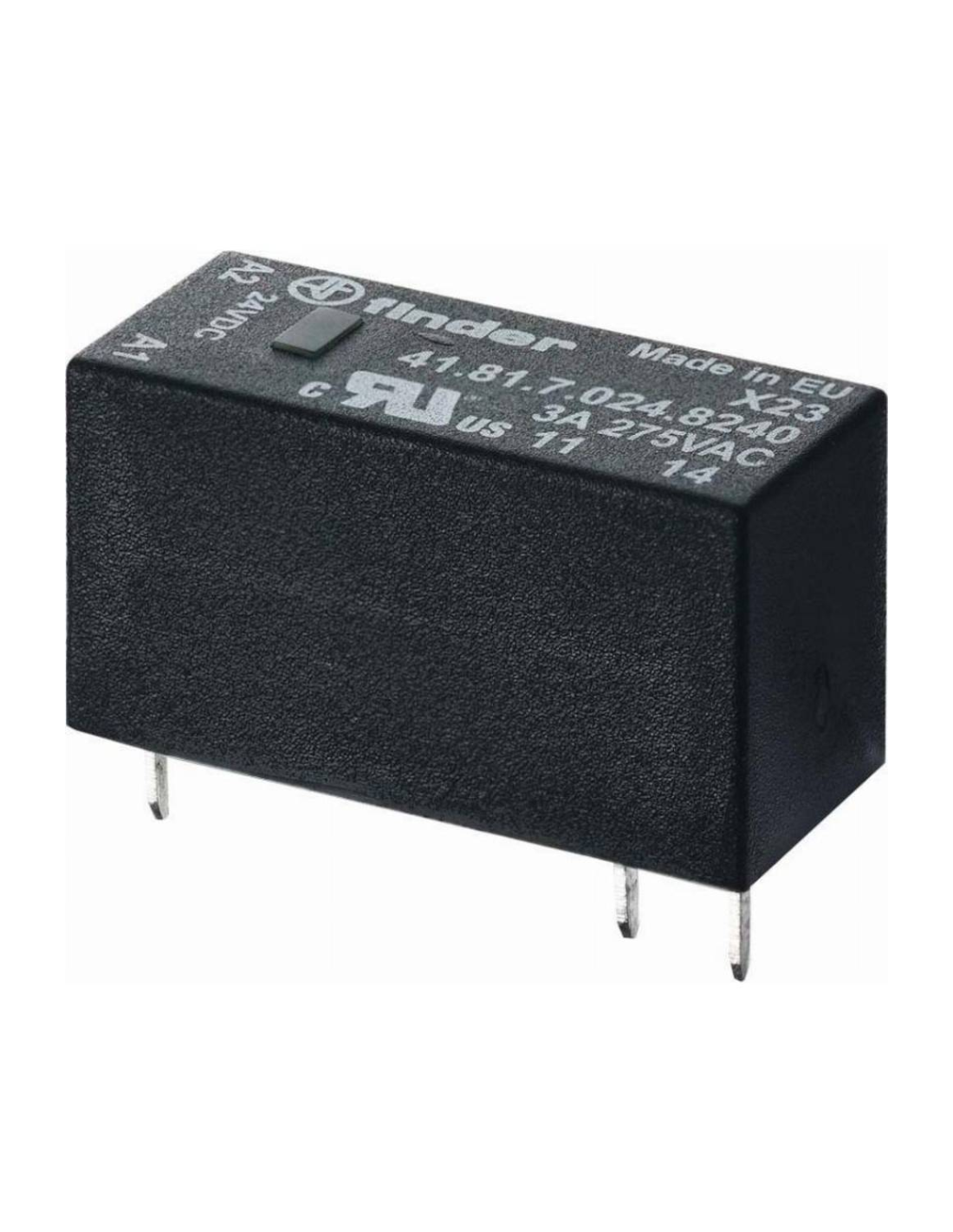

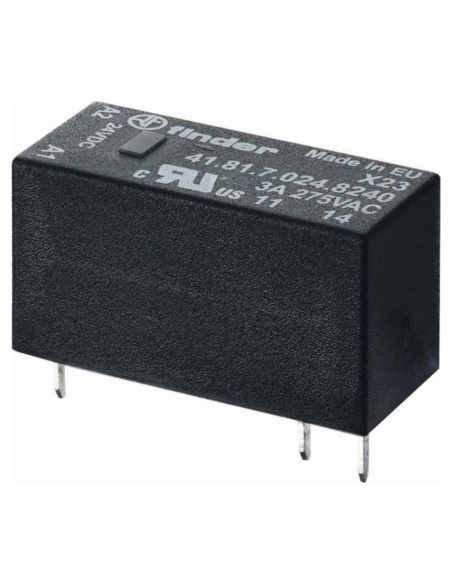

Solid State Relay (SSR) for PCB or socket mounting 93 series.
Low noise, high switching speed and long electrical life.
Suitable for PCB mounting.

Features:
- PCB mounting (direct or on PCB sockets) or 35 mm rail mounting (EN 60715) on sockets with sleeve or spring terminals;
- Single output circuit 5 A, 24 V DC;
- Low noise, high switching speed and electrical life;

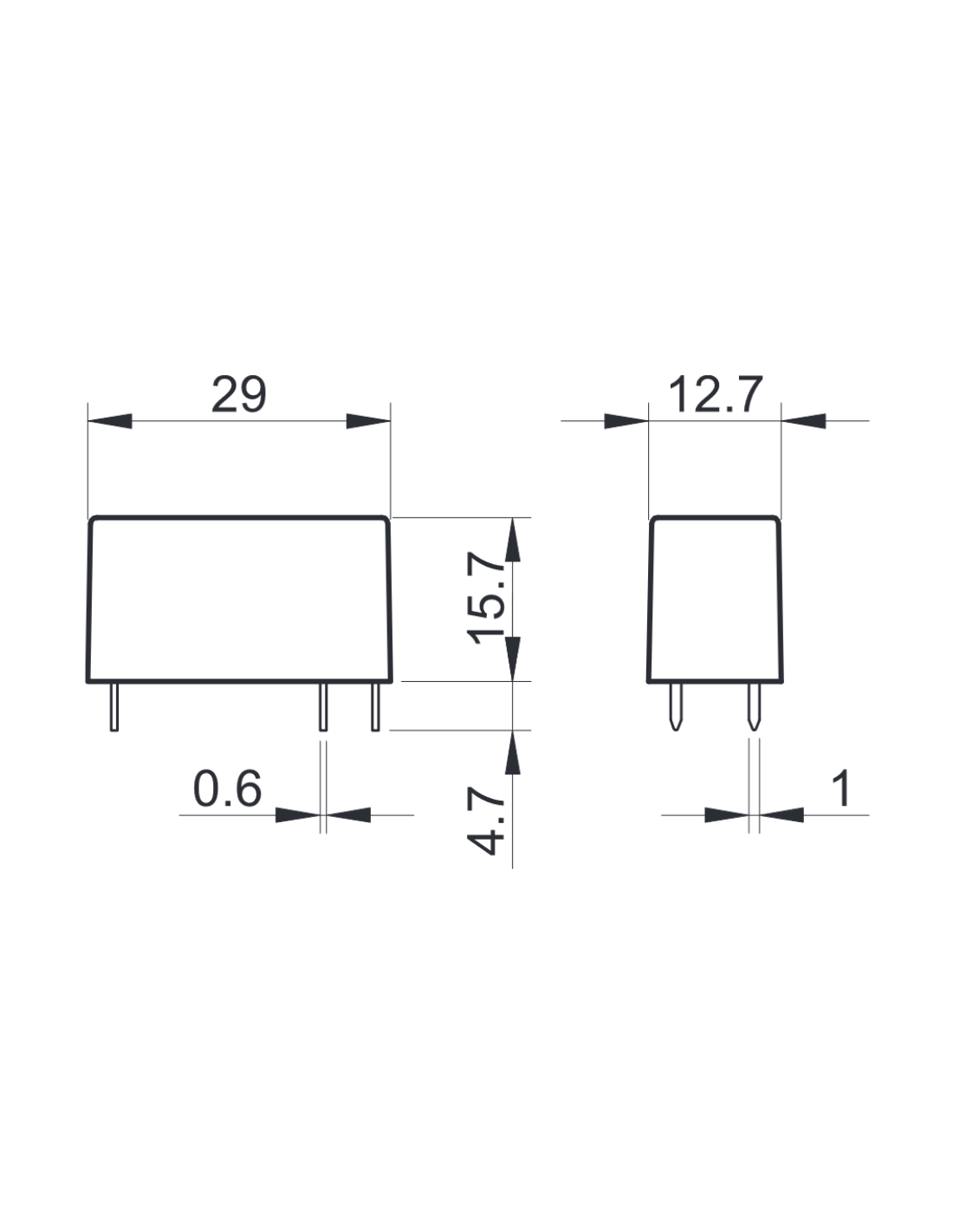

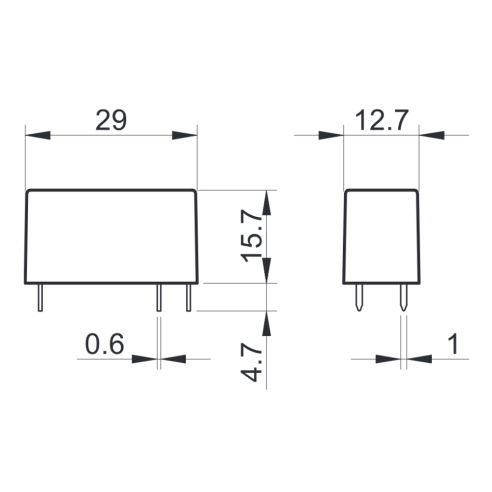

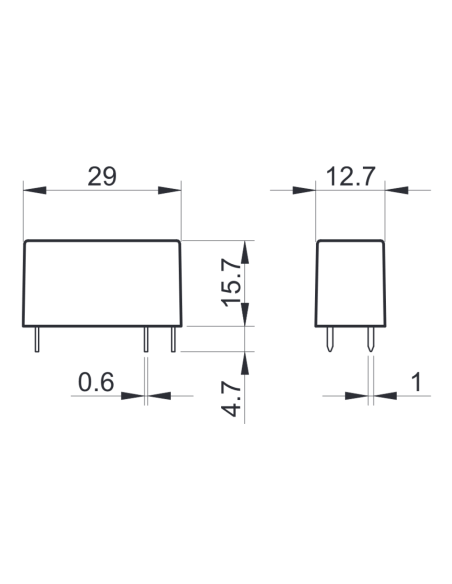

- Low profile (15.7 mm);
- Washable: RT III;
- Input-to-output isolation 2500 V AC.

Description

Output circuit

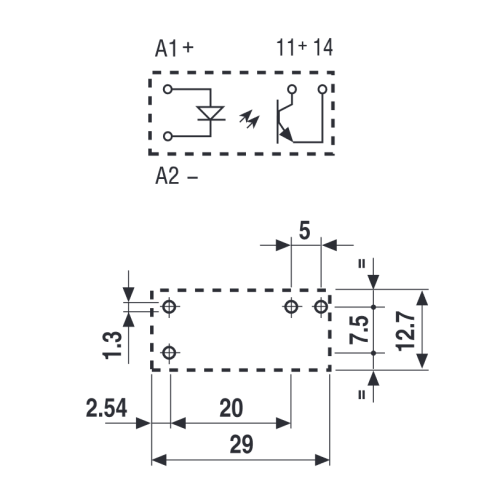

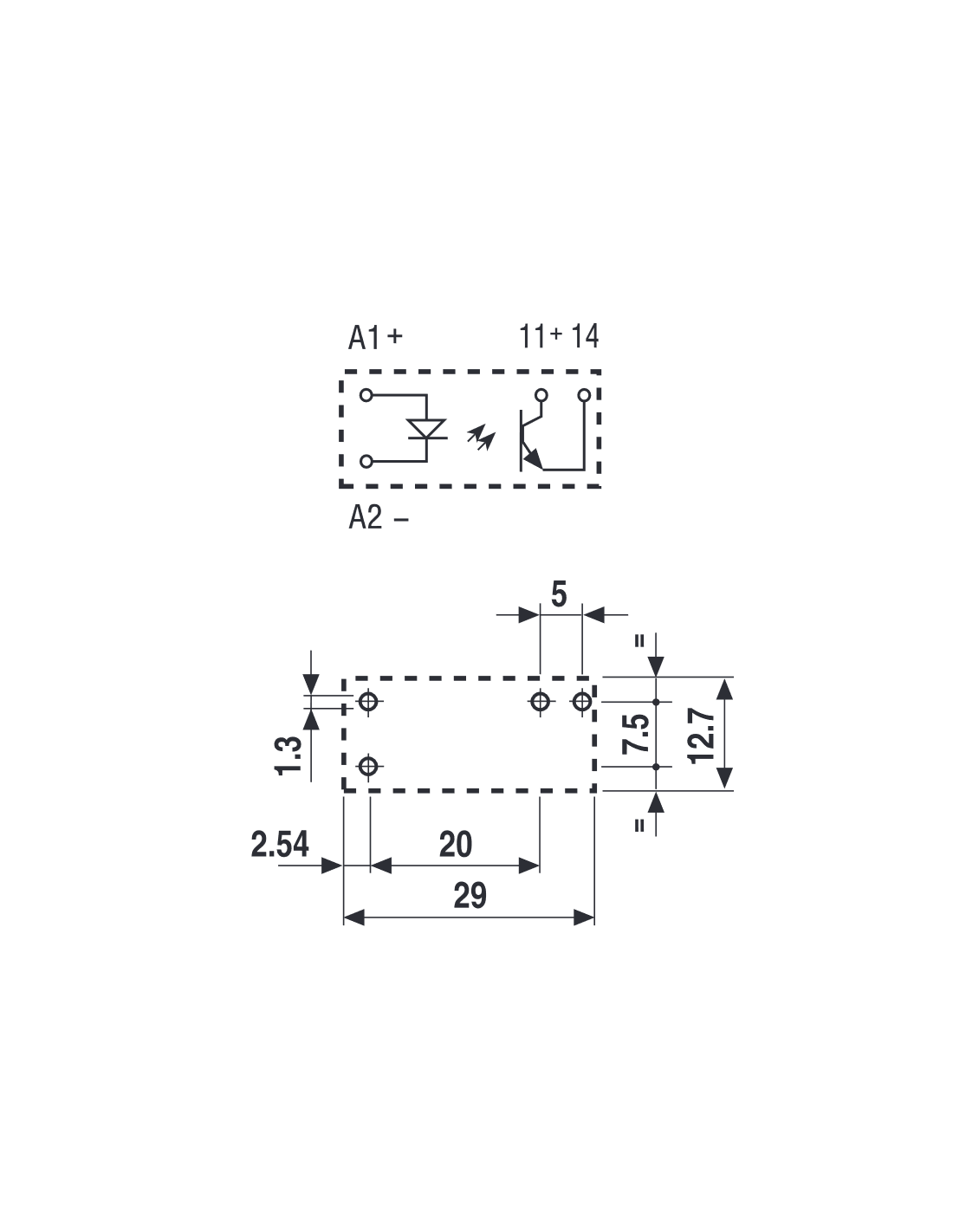

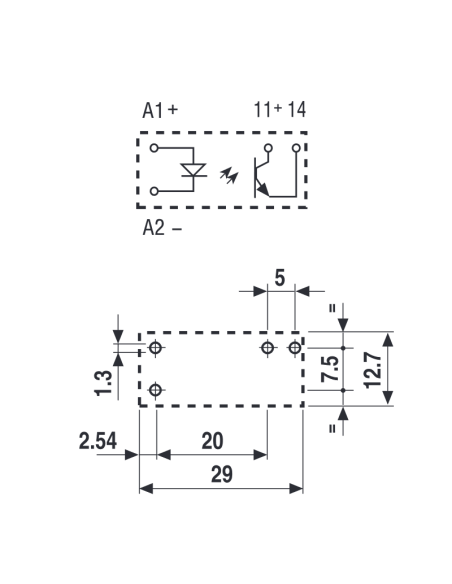

Contact configuration	1 NO contact
Rated current/maximum instantaneous current	5A / 40A
Rated switching voltage	24 Vdc
Switching voltage	1.2 ~ 24 Vdc
Maximum blocking voltage	35 Vdc
Minimum switching current	1 mA
Maximum output drop-out voltage ON	0,3 V
Input circuit
Supply voltage	24 Vdc
Operating range	14 ~ 32 Vdc
Nominal absorption	9 mA
Release voltage	9 Vdc
General features
Tripping time: ON/OFF	10 mS
Dielectric strength between input/output	2500 Vac
Operating temperature	-20°C ~ +60°C
Protection category	RTIII
Product information
Model	41.81.7.024.9024
Manufacturer	Finder
