| Sensor | 1/2.8" Progressive Scan CMOS |
| Minimum illumination | Colours: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @(F1.6, AGC ON) |
| Shutter speed | From 1/3 s to 1/100, 000 s |
| Slow shutter | Yes |
| Day / Night | IR filter |
| Noise reduction | 3D DNR |
| WDR | Digital WDR |
| Rotation | Horizontal 355°, vertical 70°. |
| Lens |
| Type | Varifocal, 2.8mm to 12mm |
| Opening | F1.6 |
| Visual angle | Horizontal: 98° to 34°, vertical: 52° to 19°, diagonal: 116° to 40°. |
| Lens mount | M14 |
| IR |
| Night vision | Up to 30 metres |
| Wavelength | 850nm |
| Compression |
| Video | Primary: H.265/H.264; secondary: H.265/H.264/MJPEG |
| H.264 | Basic profile / Main profile / High profile |
| H.264+ | Main stream |
| H.265 | Main profile |
| H.265+ | Main stream |
| Bit rate vIdeo | 32 Kbps to 8 Mbps |
| Image |
| Resolution | 2MP |
| Main stream frame rate | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Secondary stream frame rate | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Image enhancement | BLC, 3D DNR |
| Functions | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable via client software or web browser |
| Day / night settings | Automatic / Programmable |
| Network |
| Notices | Motion detection, video tampering alarm, disconnected network, conflicting IP address, unauthorised access |
| Storage | Micro SD/SDHC/SDXC cards (128G), local and ANR storage |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Functions | Restoration, anti-flicker, heartbeat, mirror, password protection, privacy, watermarking |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous display | Up to 6 channels |
| Users / Hosts | Up to 32 users, 3 levels: administrator, operator and user |
| Client | iVMS-4200 |
| Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51 |
| Interface |
| Communication interface | 1 RJ45 10M/100M Ethernet port |
| Integrated storage | Integrated micro SD/SDHC/SDXC slot, up to 128 GB |
| General features |
| Operating temperature | From -30 °C to 50 °C |
| Power supply | 12 VDC ± 25%, 5.5 mm; PoE (802.3af, class 3) |
| Consumption | 12 VDC, 0.8 A, Max: 10 W; PoE: (802.3af, 36 V - 57 V), 0.4 A - 0.2 A, Max: 12 W |
| IP Rating | IP67 |
| IK Rating | IK10 |
| Material | Metal, plastic |

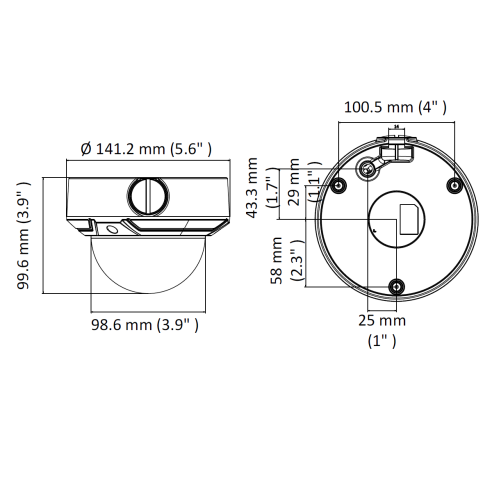

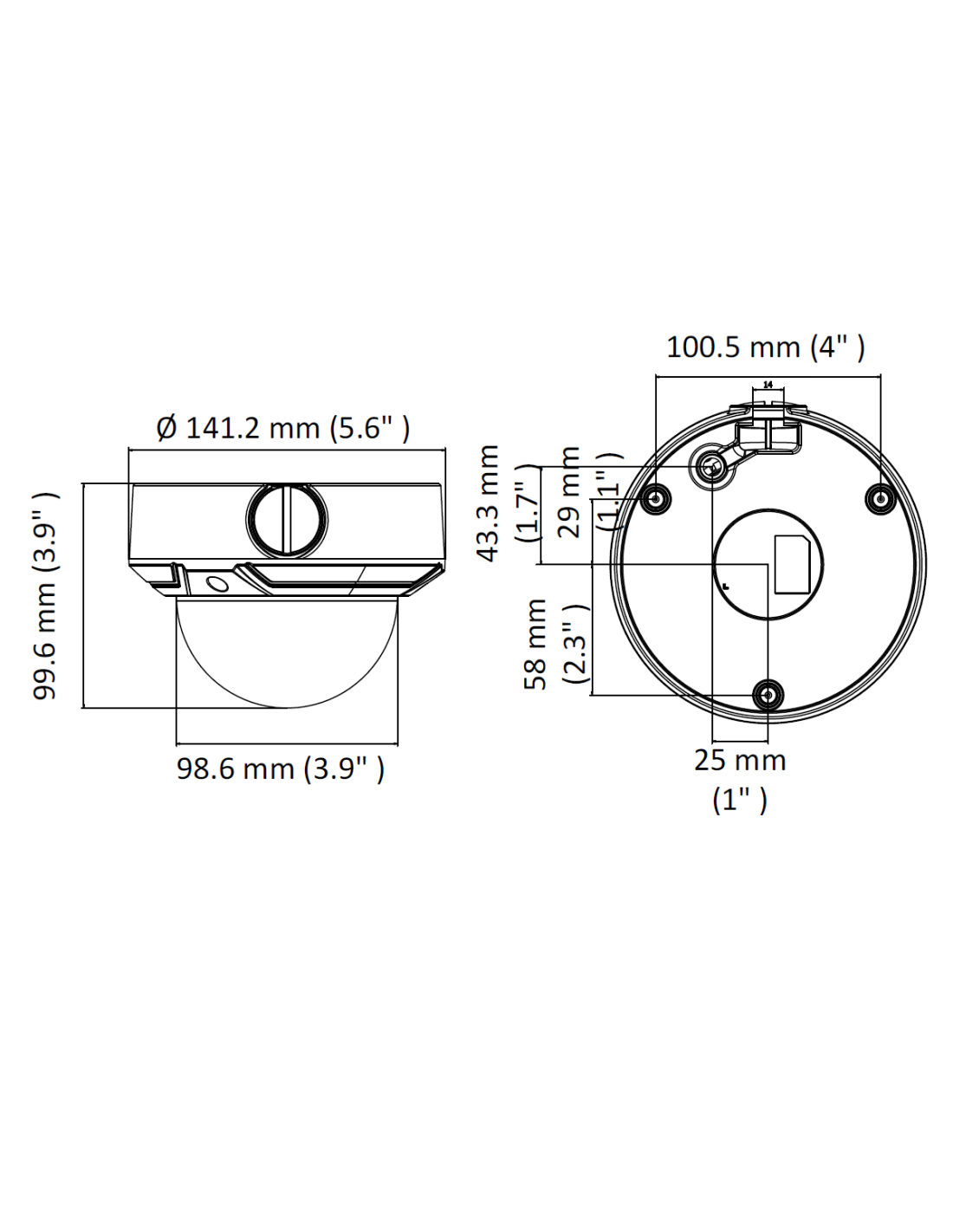

| Dimensions | Ø 141.2 x 99.6 mm |
| Weight | 820 g |

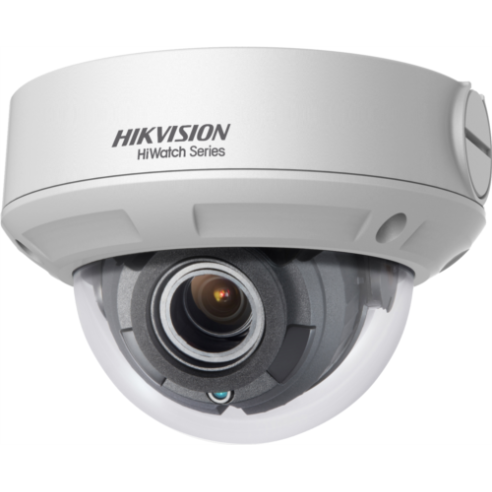

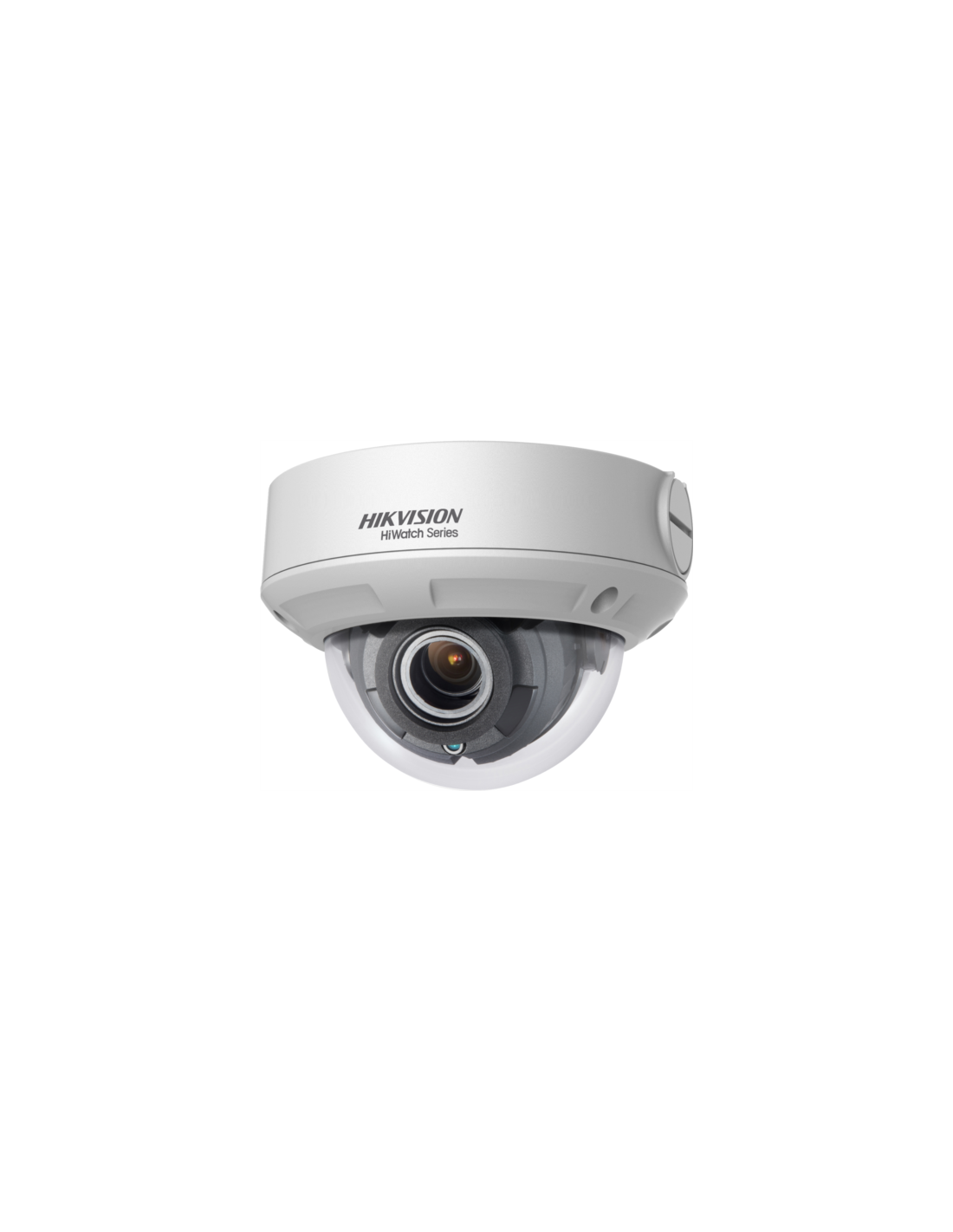

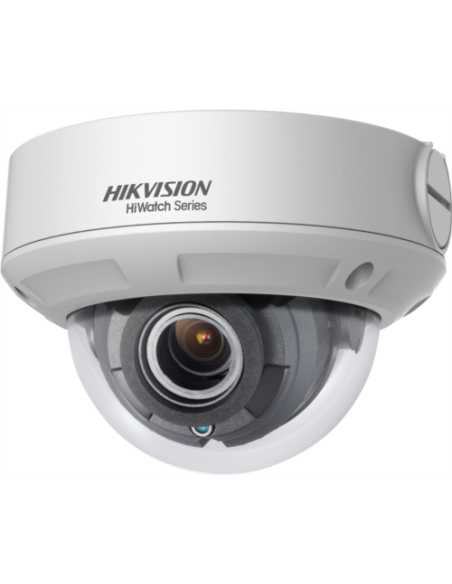

| Model | HWI-D620H-Z |
| Brand | Hikvision |
