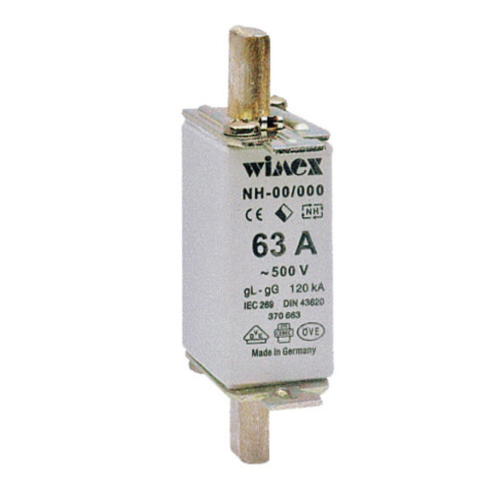

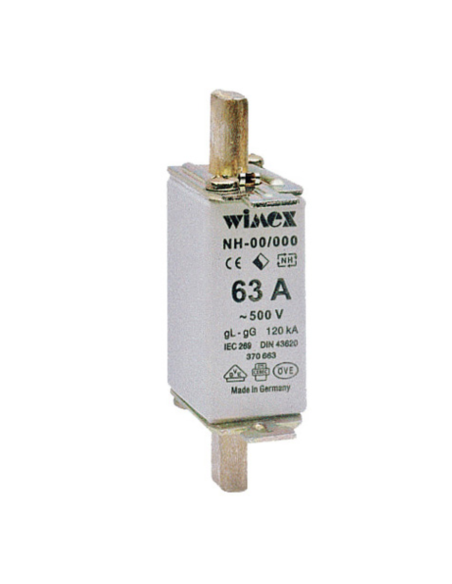

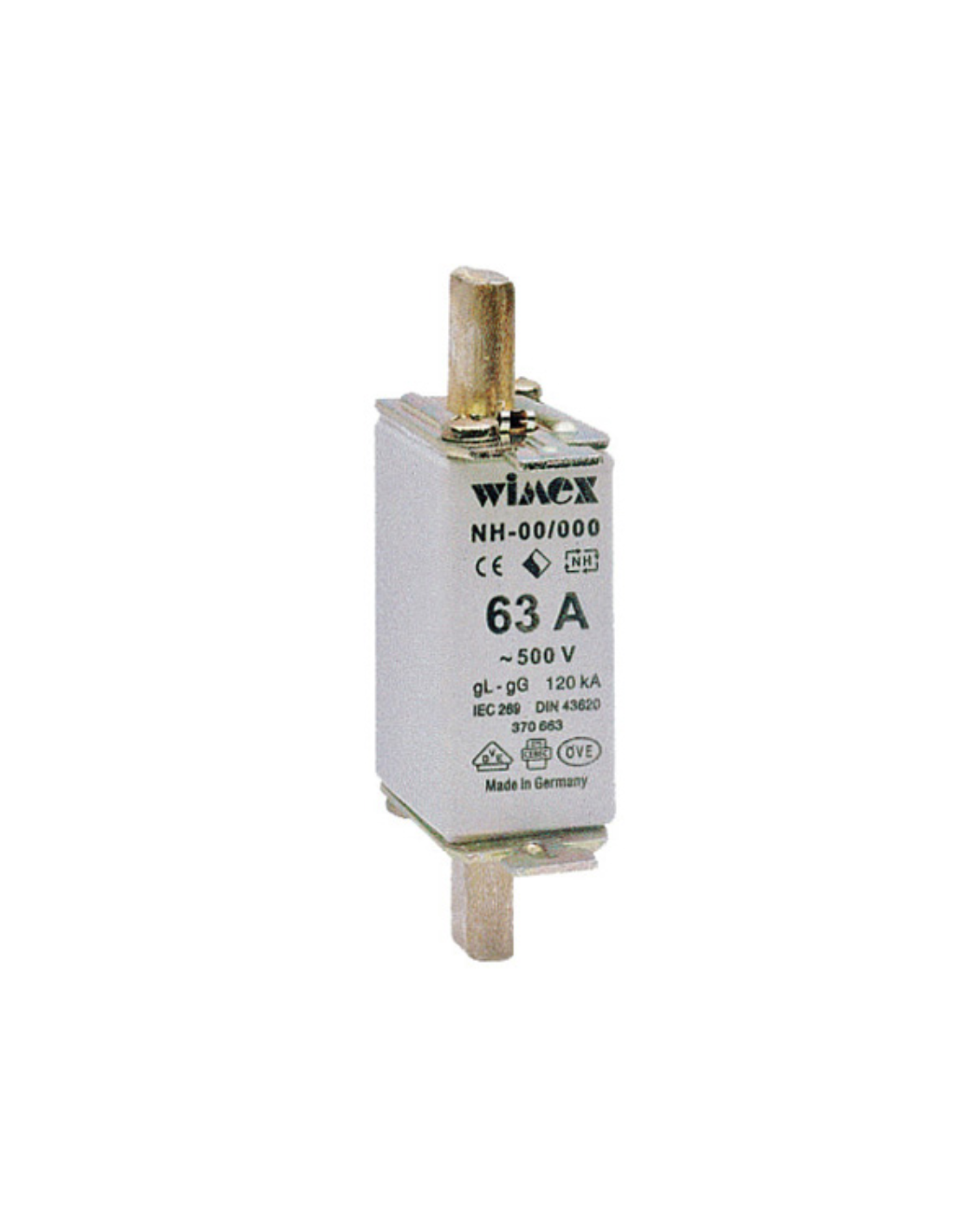

Fuse NH 000, delayed tripping, 500V 63A, use gG - Wimex 5500063
Fuse NH 000, delayed tripping, 500V 63A, use gG - Wimex 5500063

Fuse NH 000, delayed tripping, 500V 63A, use gG - Wimex 5500063

61.001.2204500
Out-of-Stock
€4.70
VAT included
NH fuses are suitable for overload and short-circuit protection of lines, motors, transformers, i.e. for industrial applications.
Compliant with standards: IEC 32.1-.4, VDE 0636, IEC EN 60269.1-.2, DIN 43620.

Description

Rated voltage500 Vac
Interrupting power (lk)120 KA
Rated frequency50 Hz
Frequency of operation45 ~ 62 Hz
Class of usegG (gL VDE)
Insulator materialSteatite
Conductor materialSilver-plated copper
Melting indicatorFuse top with steel spring
Maximum operating temperature80°C
Mechanical resistanceVibration: 7 ~ 50 Hz with 1g

Impacts: 5g
Characteristic interventionDelayed
Reference StandardsCEI 32.1-.4, VDE 0636, IEC EN 60269.1-.2, DIN 43620
Model5500063
ManufacturerWimex

Product Details

Brand
Wimex
Fuse type
NH000 - delayed
Rated voltage
500V
Corrente nominale
63 A
