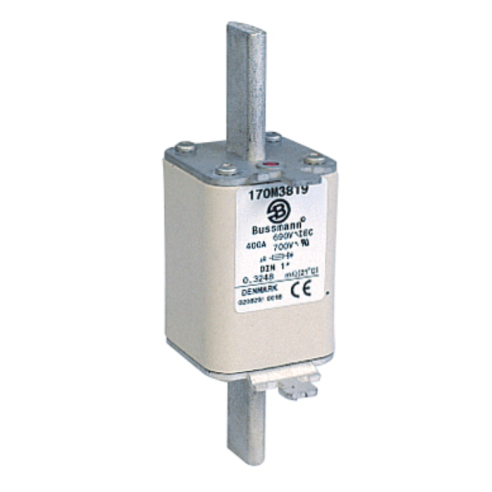

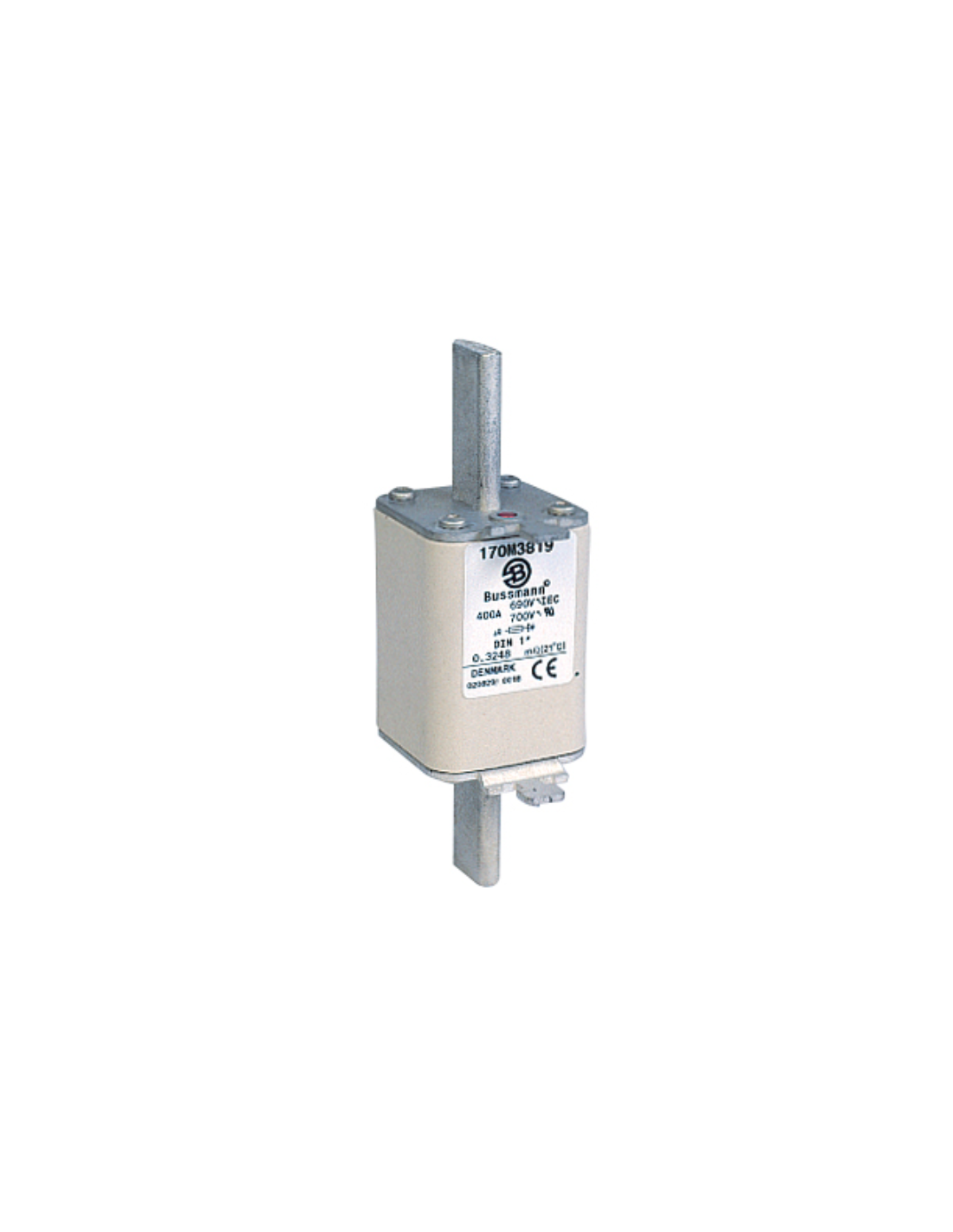

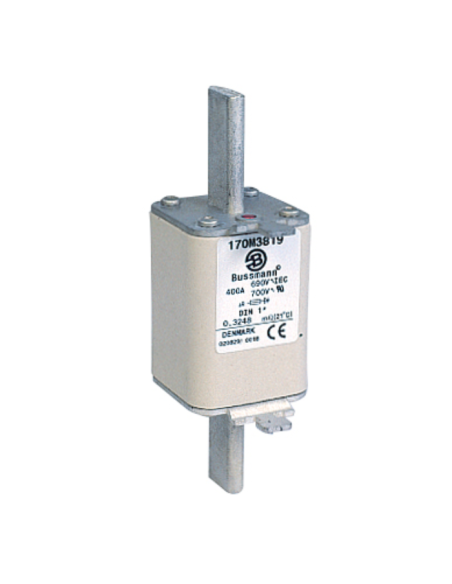

Fuse NH 1 M38 aR 170 series, super fast, with striker, 690V 100A - Wimex 5523612
Fuse NH 1 M38 aR 170 series, super fast, with striker, 690V 100A - Wimex 5523612

Fuse NH 1 M38 aR 170 series, super fast, with striker, 690V 100A - Wimex 5523612

61.001.2204920
Out-of-Stock
€95.80
VAT included
NH super-rapid industrial fuses, characterised by high breaking capacity and low specific energy throughput (I²t), are manufactured with blade and bolt fixing, both with aR (short-circuit protection) and gR (full short-circuit and overload protection) characteristics.
Reference standards: IEC 32.1-.7,IEC EN 60269.1-.4, DIN 43620, VDE 0636.

Description

Rated voltage690 Vac (IEC); 700 Vac (UL)
Interrupting power (lk)690 Vac 200 KA (IEC); 700Vac 200 KA (UL)
MaterialSteatite
Intervention characteristicSuper fast
Interruption rangeAR
I²t2600
Pw10
Reference StandardsCEI 32.1-.7,IEC EN 60269.1-.4, DIN 43653
Model5523612
ManufacturerWimex

Product Details

Brand
Wimex
Fuse type
NH1 - super fast, with striker
Rated voltage
690V
Corrente nominale
100 A
